Steering Lock Ecu Harness Connector

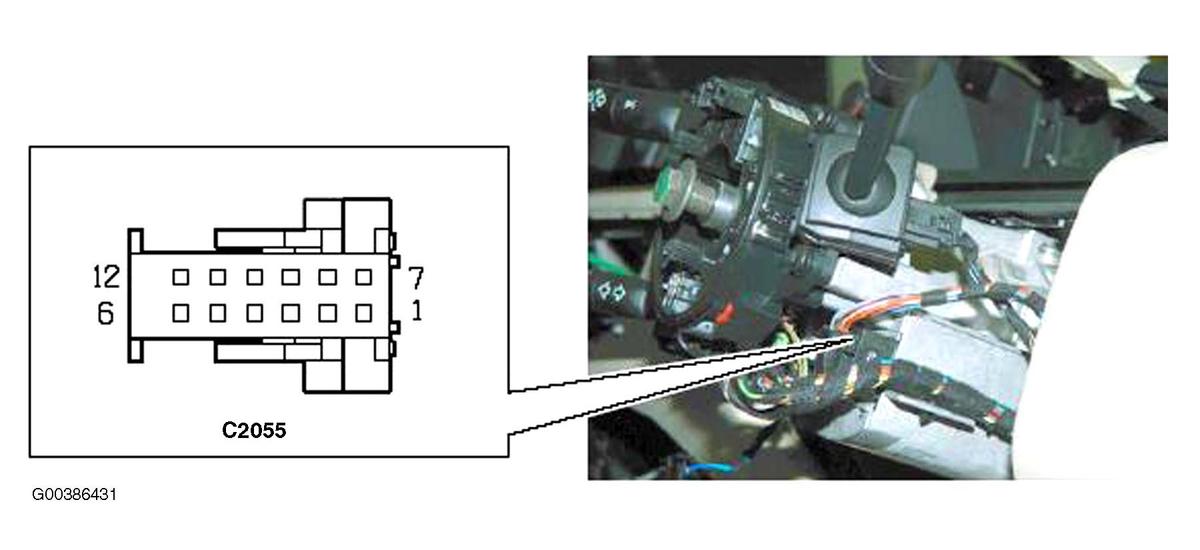

For steering lock ECU harness connector location and pin identification, see Fig 1. For steering lock ECU harness connector pin description, see STEERING LOCK ECU HARNESS CONNECTOR C2055 PIN DETAILS table.
STEERING LOCK ECU HARNESS CONNECTOR C2055 PIN DETAILS
| Pin No. (1) | Description | Input/Output | ||
|---|---|---|---|---|
| 1 | Ignition Switch Lock Solenoid Actuator | Output | ||
| 2 | Ignition Switch Detection Of Rotation Input | Input | ||
| 3 | Transmission Selector Lever Park/Neutral Signal | Input | ||
| 4 | Not Used | - | ||
| 5 | Transmission Selector Lever Park/Neutral Signal | Output | ||
| 6 | Ignition Switch Detection Of Rotation Voltage | Output | ||
| 7 | Battery Power Supply | Input | ||
| 8 | K-Bus | Input/Output | ||
| 9 | Road Speed | Input | ||
| 10 | Ignition Power Supply | Input | ||
| 11 | Auxiliary Power Supply | Input | ||
| 12 | Ground | Input | ||
|
||||
