Power Distribution

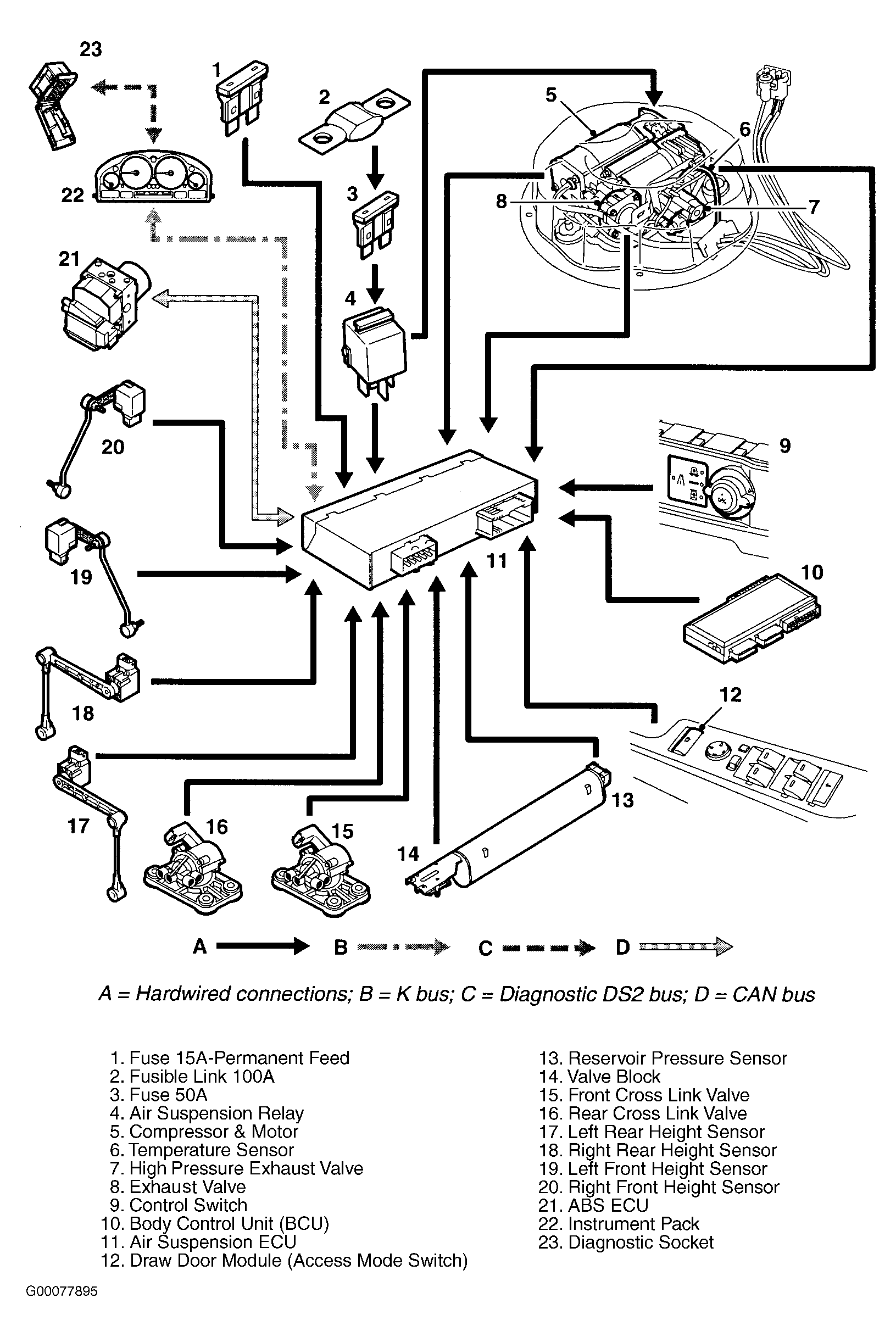

Feed from the positive battery connector C0192 terminal No. 1 is supplied to fusible link 5 (100-amp) and fuse 57 (15-amp) of the passenger compartment fuse box connector C0632 terminal No. 1 (Red wire). See Figure.

Fuse 57 (15-amp) through connector C0582 terminal No. 3 provides a constant battery feed to the air suspension ECU connector C2030 terminal No. 10 (Red/Brown wire).

The air suspension ECU is grounded through connector C2030 terminal No. 5 (Yellow/Black wire).

Fusible link 5 (100-amp) connector C0588 terminal No. 1 is connected to fuse 18 (50-amp) of the rear fuse box connector C2024 terminal No. 1 (Red wire). Fuse 18 (50-amp) provides a constant battery feed to the air suspension relay, which is also located in the rear fuse box.
