Front Wheel Alignment Camber Adjustment

1. Remove cap from top mounting. Break off locating pin. See Fig 1.
2. Loosen nut securing damper upper mounting. Fit LRT-57-045 to damper upper mounting. See Fig 2.
3. Loosen remaining nuts securing damper upper mounting. See Fig 2. Adjust camber to specified value by turning nut in LRT-57-045.
4. Tighten damper upper mounting nuts to 56 N.m (41 lbf. ft). Repeat procedure for other side.

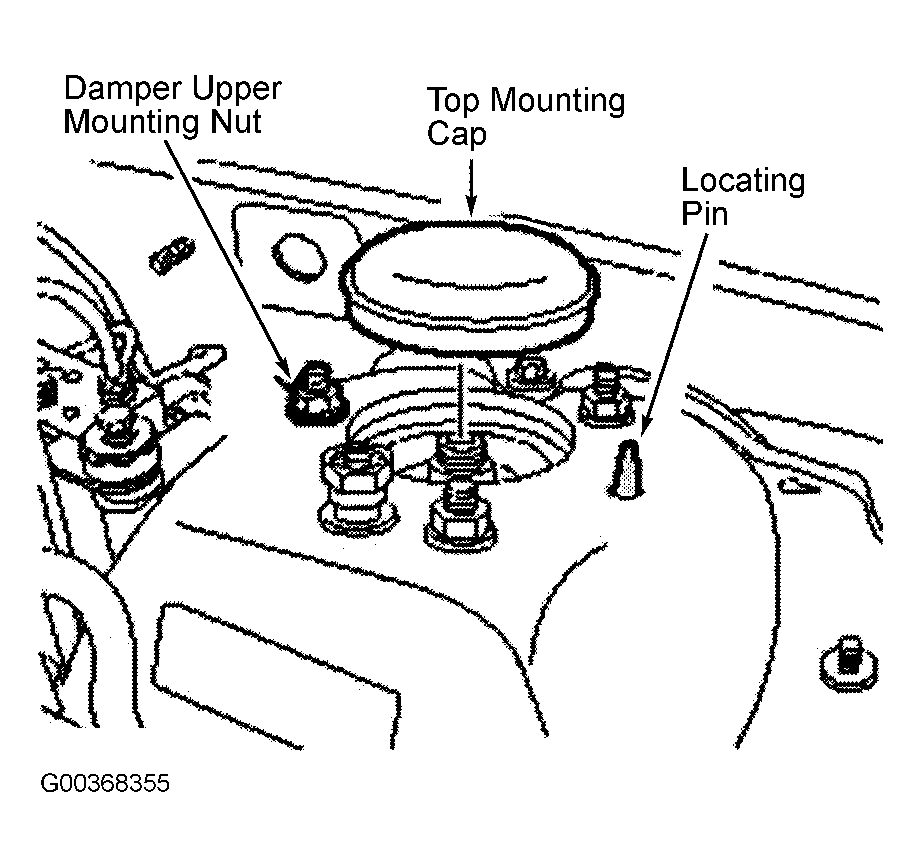

Fig 1: Front Alignment Camber Adjustment (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

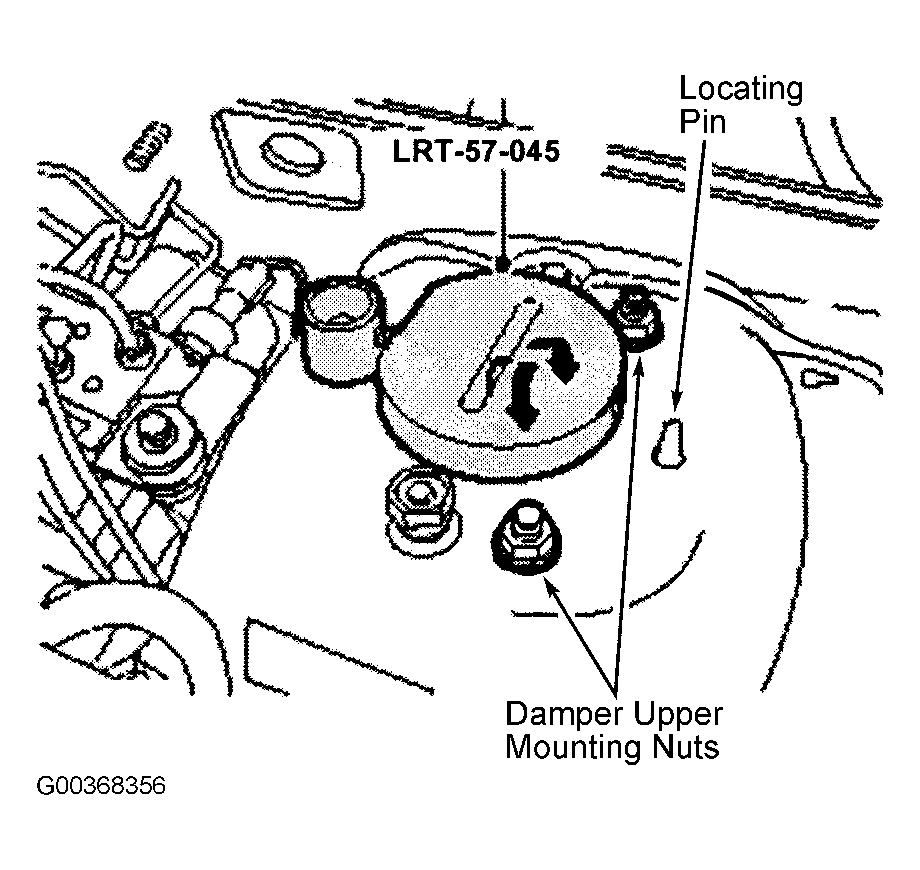

Fig 2: Front Alignment Camber Adjustment (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
