Rear Wheel Alignment Camber Adjustment

1. Disconnect battery ground lead. See DISCONNECTING & RECONNECTING BATTERY  under SERVICE PRECAUTIONS.
2. Observe readings from test equipment and adjust geometry as required. See SPECIFICATIONS .
3. Loosen upper ball joint nut approximately 3/4 of a turn. See Fig 1.
4. Turn eccentric and adjust camber to specified value. See SPECIFICATIONS . Tighten nut securing upper ball joint to hub to 165 N.m (121 lbf. ft). Repeat rear camber adjustment for other side.

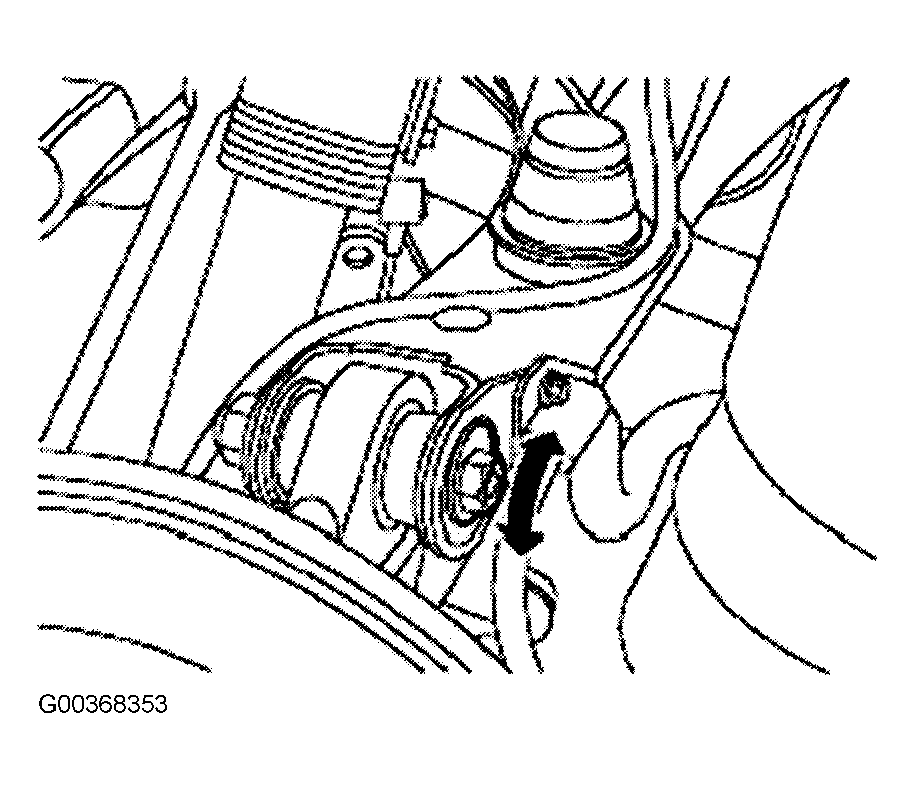

Fig 1: Rear Alignment Camber Adjustment

Courtesy of LAND ROVER NORTH AMERICA, INC.
