Rear Wheel Alignment Toe In/Out Adjustment

1. Loosen nut securing rear tie rod approximately 3/4 of a turn. See Fig 1.
2. Turn eccentric and adjust toe to specified value. See SPECIFICATIONS . Tighten nut securing tie rod to sub frame to 165 N.m (121 lbf. ft). Repeat procedure for other side.

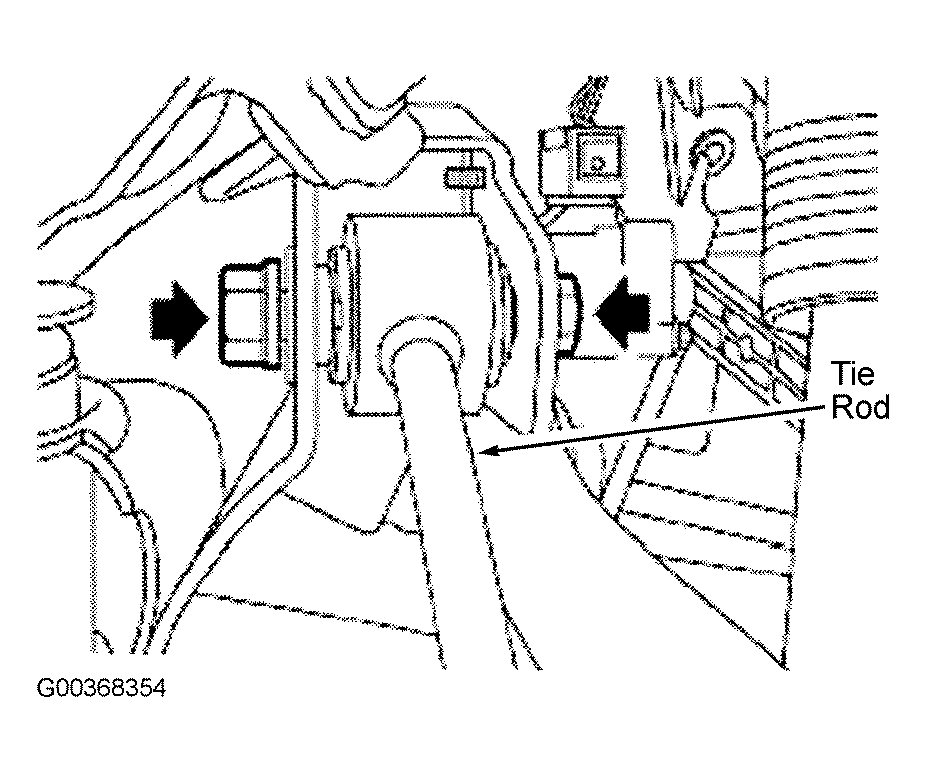

Fig 1: Rear Alignment Toe In/Out Adjustment

Courtesy of LAND ROVER NORTH AMERICA, INC.
