Component Locations

For transmission component locations, see Fig 1 and Fig 2 .

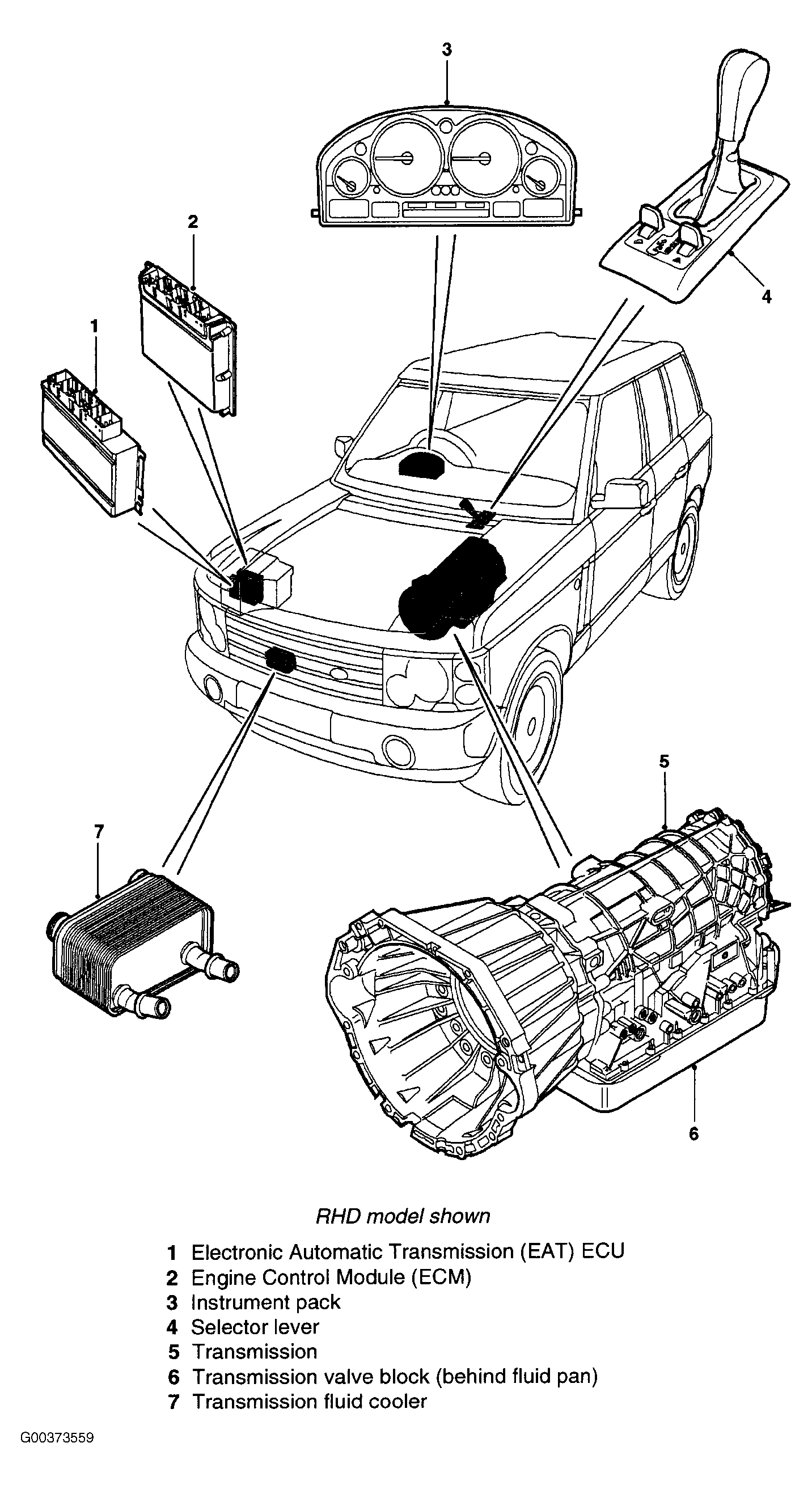

Fig 1: Locating ZF 5HP24 Automatic Transmission Components
G00373559Courtesy of LAND ROVER NORTH AMERICA, INC.

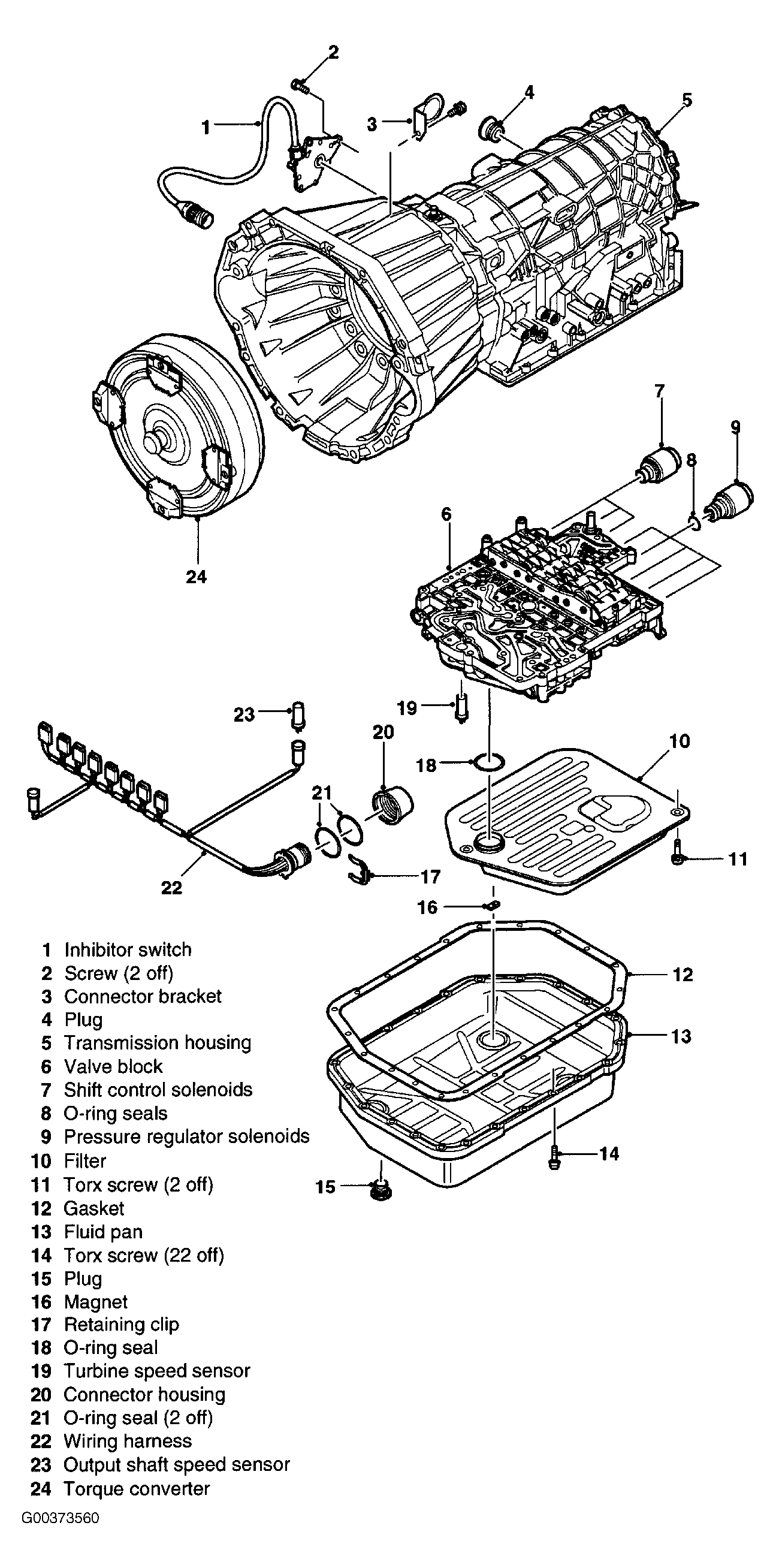

Fig 2: Exploded View Of ZF 5HP24 Automatic Transmission
G00373560Courtesy of LAND ROVER NORTH AMERICA, INC.
