Brake Shoes

With the vehicle at a convenient working height, remove the rubber plugs from the rear of the back plate.

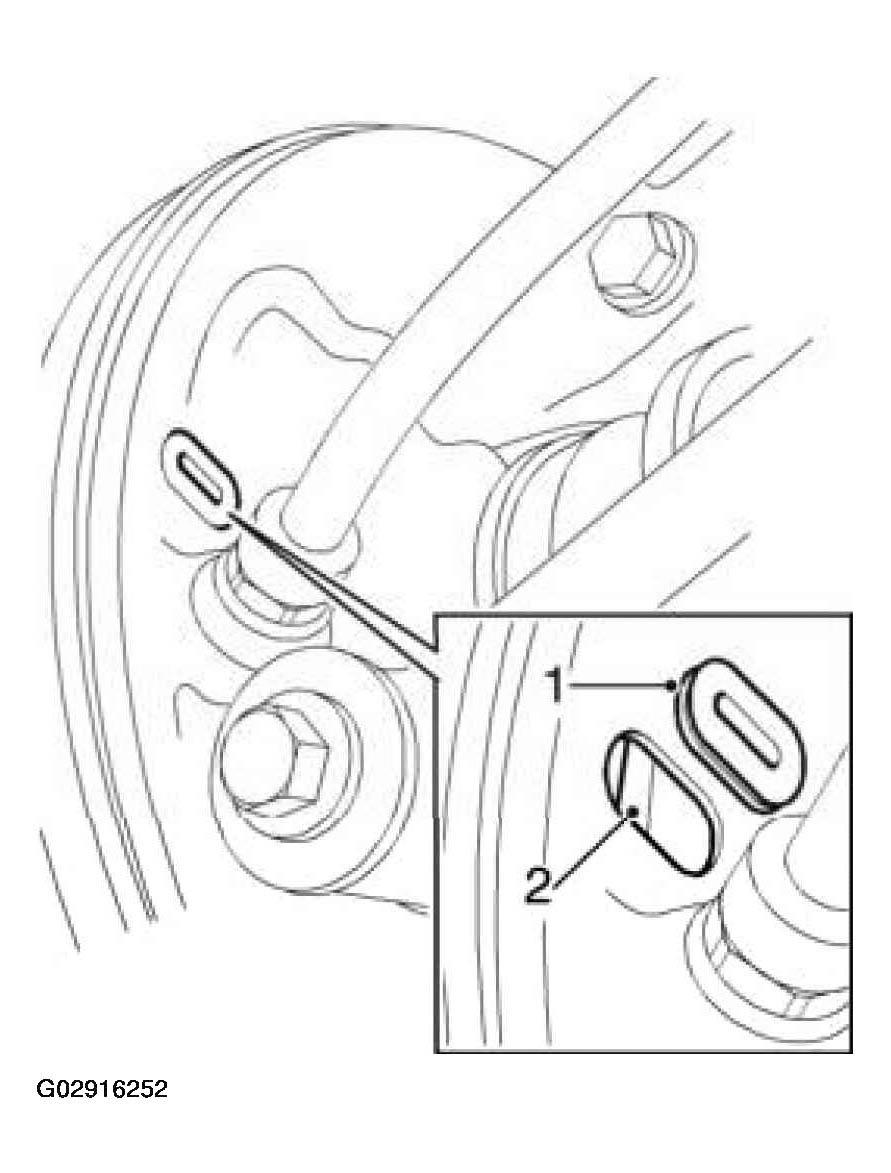

Fig 1: Removing Rubber Plugs
Courtesy of LAND ROVER NORTH AMERICA, INC.
Using a lamp, inspect thickness of rear brake shoes.
NOTE: Any requirement to replace brake shoes should be advised to the customer as this will be subject to additional labour and/or material cost and should not be carried out without the authorization of the customer.
Check for any signs of brake fluid contamination on brake shoes, or evidence of brake fluid leakage from drum/backplate.
Ensure that rubber plug is correctly fitted into back plate upon completion of check.
