Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

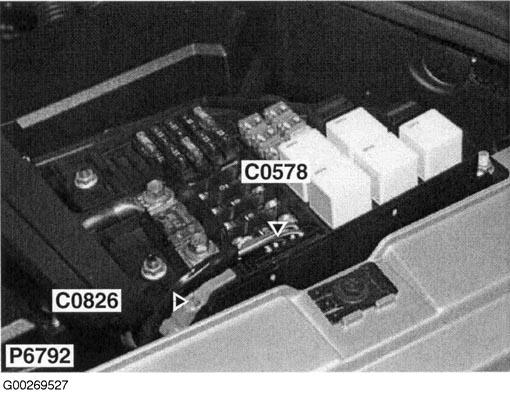

| Engine Compartment Fuse Box Connector (C0578) | Left rear of engine compartment. See Figure . |
| Engine Compartment Fuse Box Connector (C0826) | Left rear of engine compartment. See Figure . |

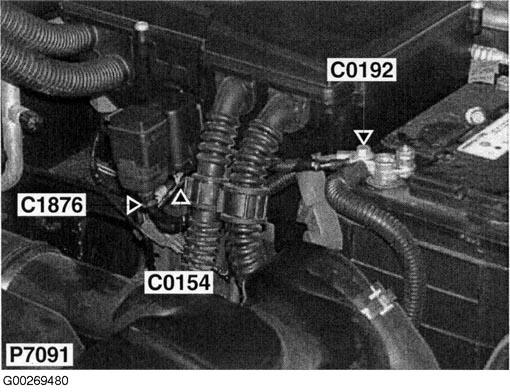

| Fuse Holder Connector (C1876) | At left side of engine compartment. See Figure . |

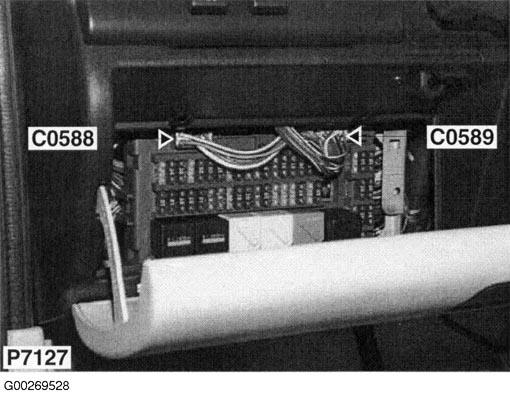

| Passenger Compartment Fuse Box (P7127) | Behind left side of dash. See Figure . |
