Secondary Air Injection System Monitoring Operation

For secondary air injection system monitoring operation and enabling conditions, see Fig 1 .

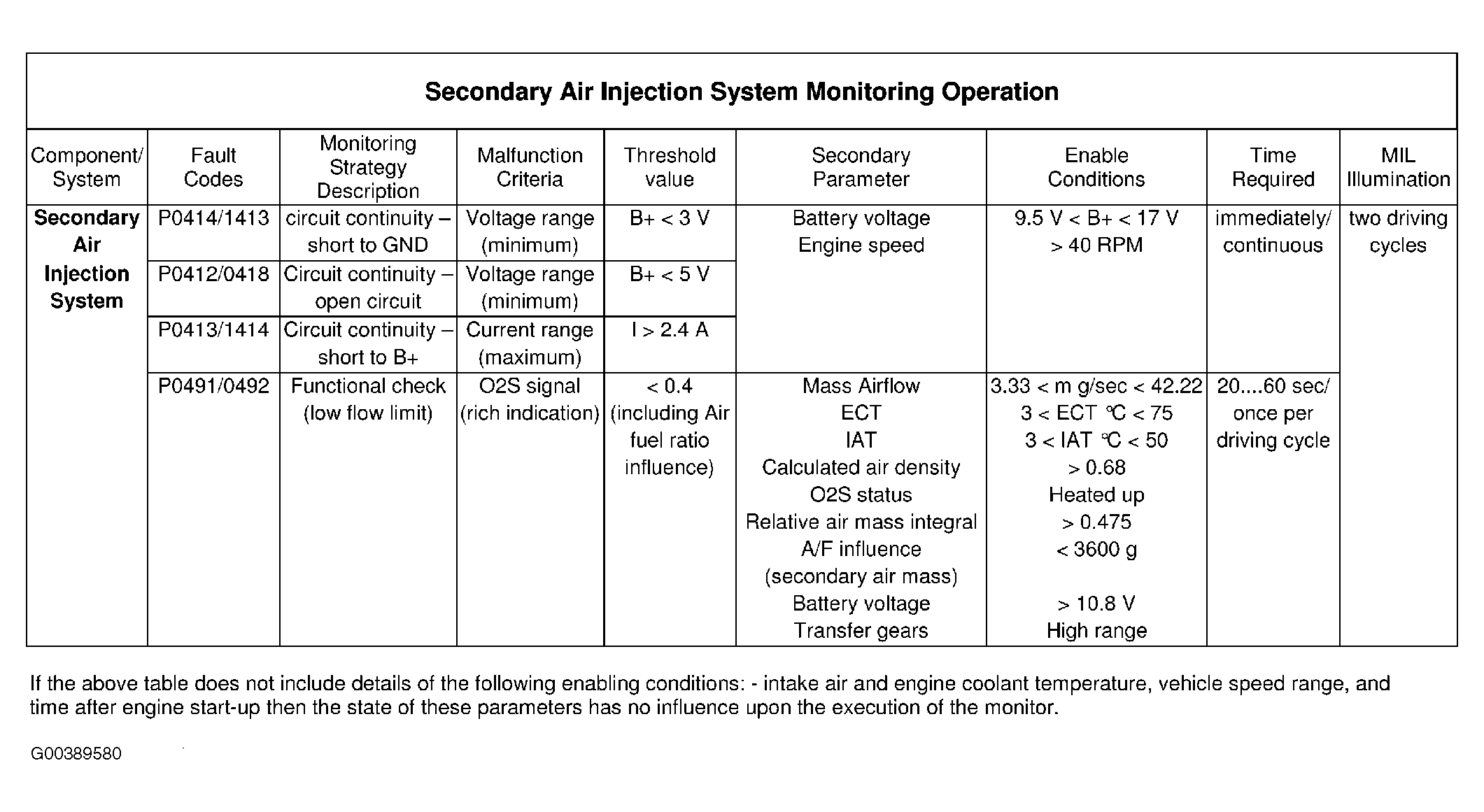

Fig 1: Secondary Air Injection System Monitoring Operation & Enabling Conditions

Courtesy of LAND ROVER NORTH AMERICA, INC.
