88.15.07 Clock
›
Remove
88.15.07 Clock: Remove
Remove clock finisher from fascia.

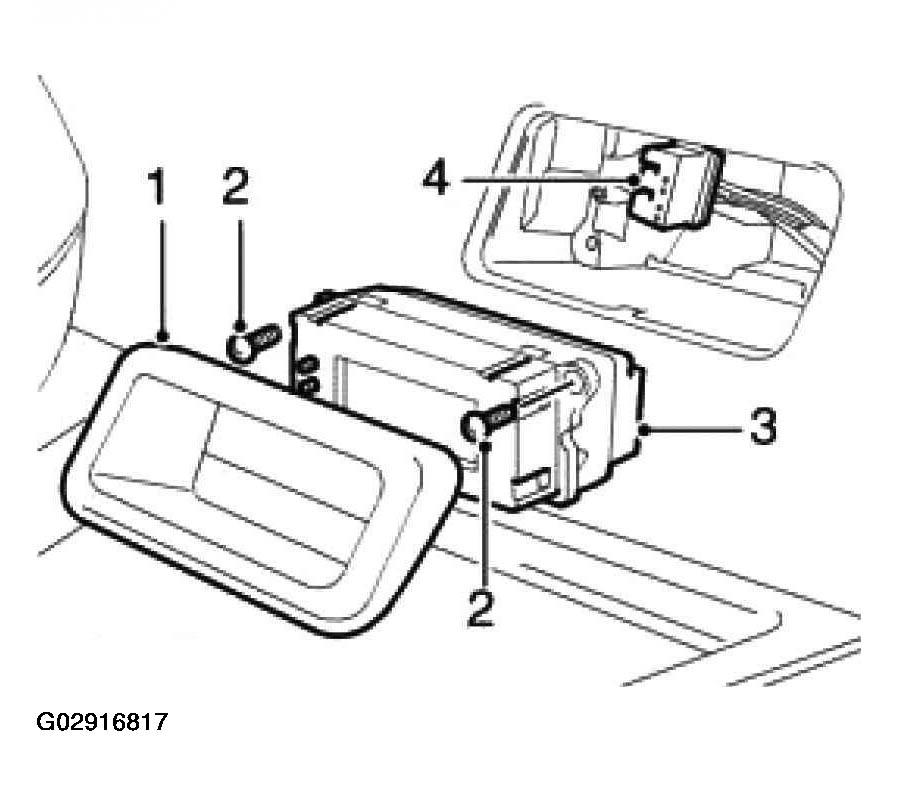

Fig 1: Removing Clock
Courtesy of LAND ROVER NORTH AMERICA, INC.
Remove 2 screws securing clock to fascia.
Release clock to gain access to multiplug.
Disconnect multiplug and remove clock.
