Circuit Protection Devices
Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
Component
Location

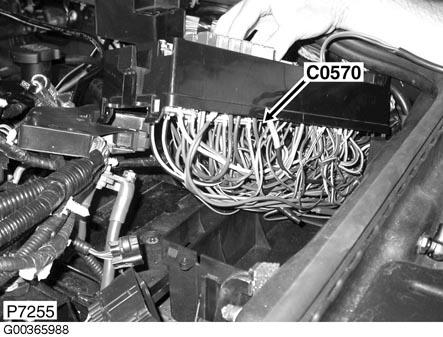

Engine Compartment Fuse Box Connector (C0570)
Under engine compartment fuse box. See
Figure
.

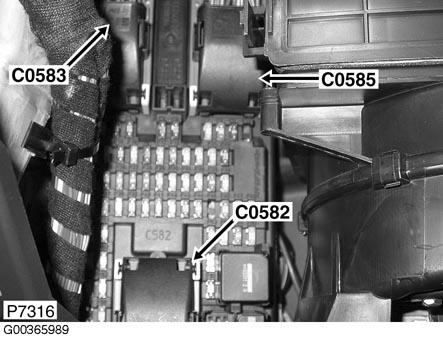

Passenger Compartment Fuse Box (C0582)
Right side of dash. See
Figure
.
