Passenger Compartment
NOTE:

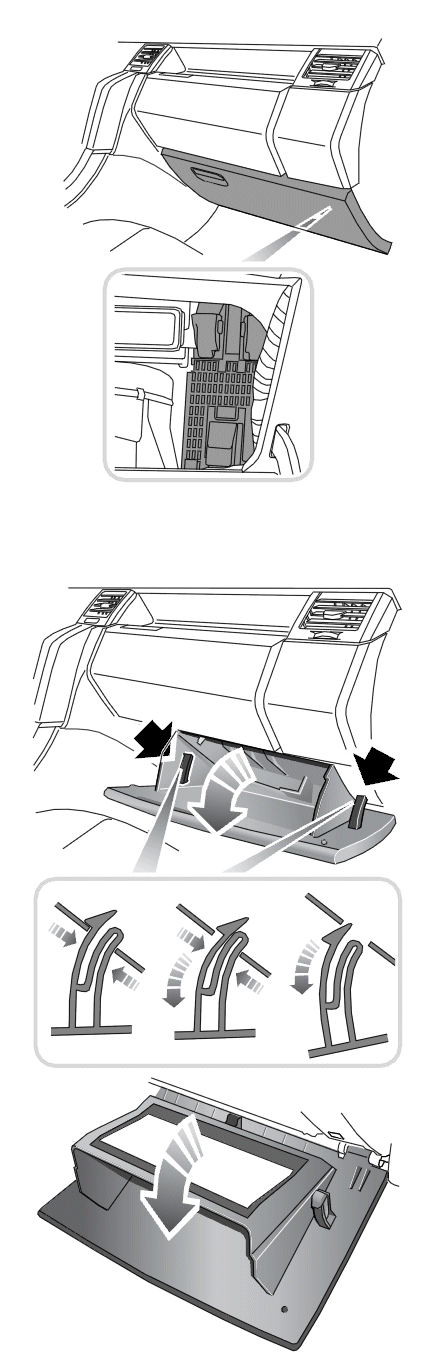

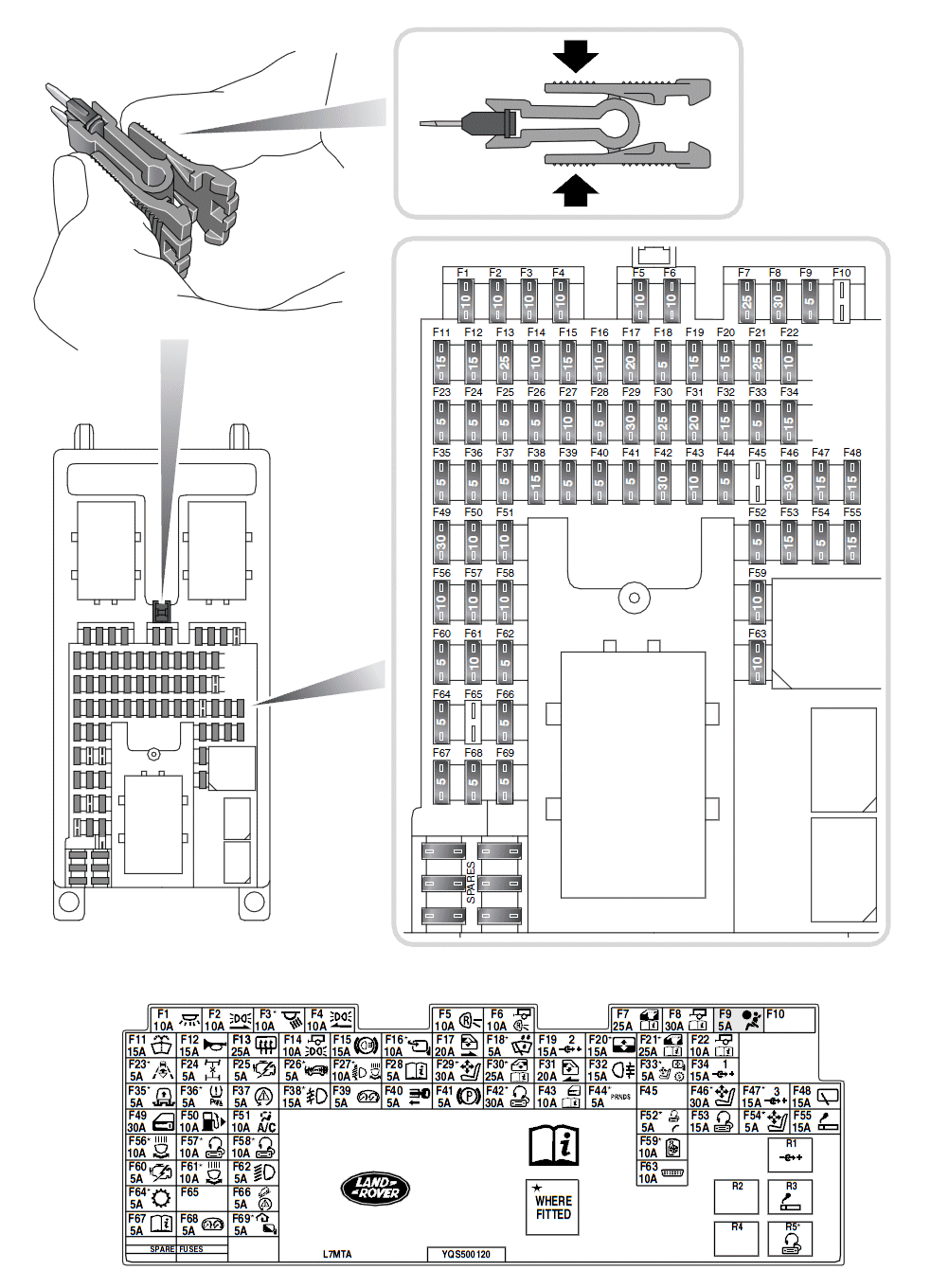

The passenger compartment fuse box is fitted behind the glovebox. To access the fuses, open the glovebox to the service position. This is done by opening the glovebox normally and then pinching the top of the support stays located either side of the hopper. This allows the glovebox to be lowered into the footwell. A label on the rear of the glovebox shows the circuits protected, the fuse values and their locations. See Fig 1
PASSENGER COMPARTMENT FUSE BOX FUSE IDENTIFICATION LEGEND
| Fuse No. | Amps | Fuse Function |
|---|---|---|
| 1 | 10A | Interior Lamps - Glovebox Lamp, Vanity Mirror Lamp, Map Lamps, Switchable Roof Lamps |
| 2 | 10A | RH Sidelamps |
| 3 | - | - |
| 4 | 10A | LH Sidelamps |
| 5 | 10A | Reverse Lamps |
| 6 | 10A | Tow Reverse Lamp |
| 7 | 25A | Driver's Window |
| 8 | 30A | Trailer Pick-up (Battery Feed) |
| 9 | 5A | SRS |
| 10 | - | - |
| 11 | 15A | Washer Pump |
| 12 | 15A | Horn |
| 13 | 25A | Heated Rear Window |
| 14 | 10A | Tow Side Lamp |
| 15 | 15A | Brake Lamps, Brake Switch |
| 16 | 10A | Power-fold Mirror |
| 17 | 20A | Rear RH Window |
| 18 | 5A | Rain Sensor, Ambient Light Sensor (Auto Lamps) |
| 19 | 15A | Auxiliary Power Socket - 2nd Row |
| 20 | 15A | Sunroof |
| 21 | 25A | Passenger Window |
| 22 | 10A | Trailer Pick-up (Ignition Feed) |
| 23 | - | - |
| 24 | 5A | Transfer Box - Center Diff, Terrain Response |
| 25 | 5A | Engine Control Module (EMS) |
| 26 | 5A | Battery Back-up Sounder |
| 27 | 10A | Adaptive Front Lighting/Headlamp Levelling |
| 28 | 5A | Fuse Box Engine Compartment - Ignition |
| 29 | 30A | Passenger Electric Seat |
| 30 | 25A | - |
| 31 | 20A | Rear LH Window |
| 32 | 15A | Rear Fog Lamps |
| 33 | 5A | Mirror Adjust, PRNDS - Auto Transmission Selector, Driver/Passenger Non-memory Electric Seat |
| 34 | 15A | Socket Accessory - 1st Row |
| 35 | 5A | Air Suspension ECU |
| 36 | 5A | Park Distance Control, Tire Pressure Monitoring System (TPMS) |
| 37 | 5A | Dynamic Stability Control |
| 38 | 15A | Front Fog Lamps |
| 39 | 5A | Instrument Pack |
| 40 | 5A | Key-in Sensor |
| 41 | 5A | Electric Park Brake |
| 42 | 30A | Audio Amp |
| 43 | 10A | RF Receiver, Tire Pressure Monitoring System (TPMS) |
| 44 | 5A | PRNDS Auto Transmission Selector |
| 45 | - | - |
| 46 | 30A | Drivers Electric Seat |
| 47 | 15A | Socket Accessory - 3rd Row |
| 48 | 15A | Rear Wiper |
| 49 | 30A | CDL (Central Door Locking) |
| 50 | 10A | Electric Fuel Flap Actuator |
| 51 | 10A | HEVAC ECU |
| 52 | 5A | Telephone, Traffic Message Center |
| 53 | 15A | Head Module, Media Player, DVD Player, Infotainment Display |
| 54 | 5A | Electric Seat - Memory |
| 55 | 15A | Cigar Lighter |
| 56 | 10A | Adaptive Front Lighting (left-hand unit) |
| 57 | 10A | Rear Seat Entertainment Module |
| 58 | 10A | Telephone, Infotainment Display, Multi-media Module, TV Tuner |
| 59 | 10A | Cubby Box Cooler |
| 60 | 5A | Engine Control Module (ECM) - Ignition Signal |
| 61 | 10A | Adaptive Front Lighting (right-hand unit) |
| 62 | 5A | Low Beam, Auto Lamps |
| 63 | 10A | Diagnostic Socket |
| 64 | 5A | Auto Transmission |
| 65 | - | - |
| 66 | 5A | HDC Switch, Brake Switch, Steering Angle Sensor/DSC switch |
| 67 | 5A | Auto Lamps |
| 68 | 5A | Instrument Pack |
| 69 | 5A | Electrochromatic Mirror, Homelink |
