Video System Module: Removal

WARNING: This page is about a different car, the 2009 Land Rover Range Rover, 2008 Land Rover Range Rover, and 2007 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH loadspace trim panel.

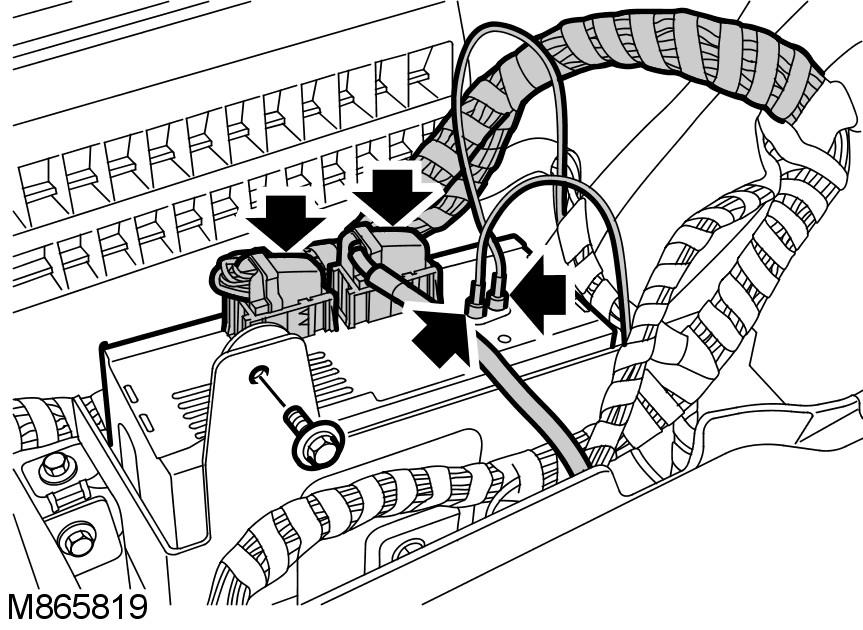

  2. Disconnect the 2 electrical connectors from the video system module.
    GJ0018703
  3. Identify and disconnect the 2 coaxial cables.
  4. Remove the video system module.
    • Remove the bolt.
