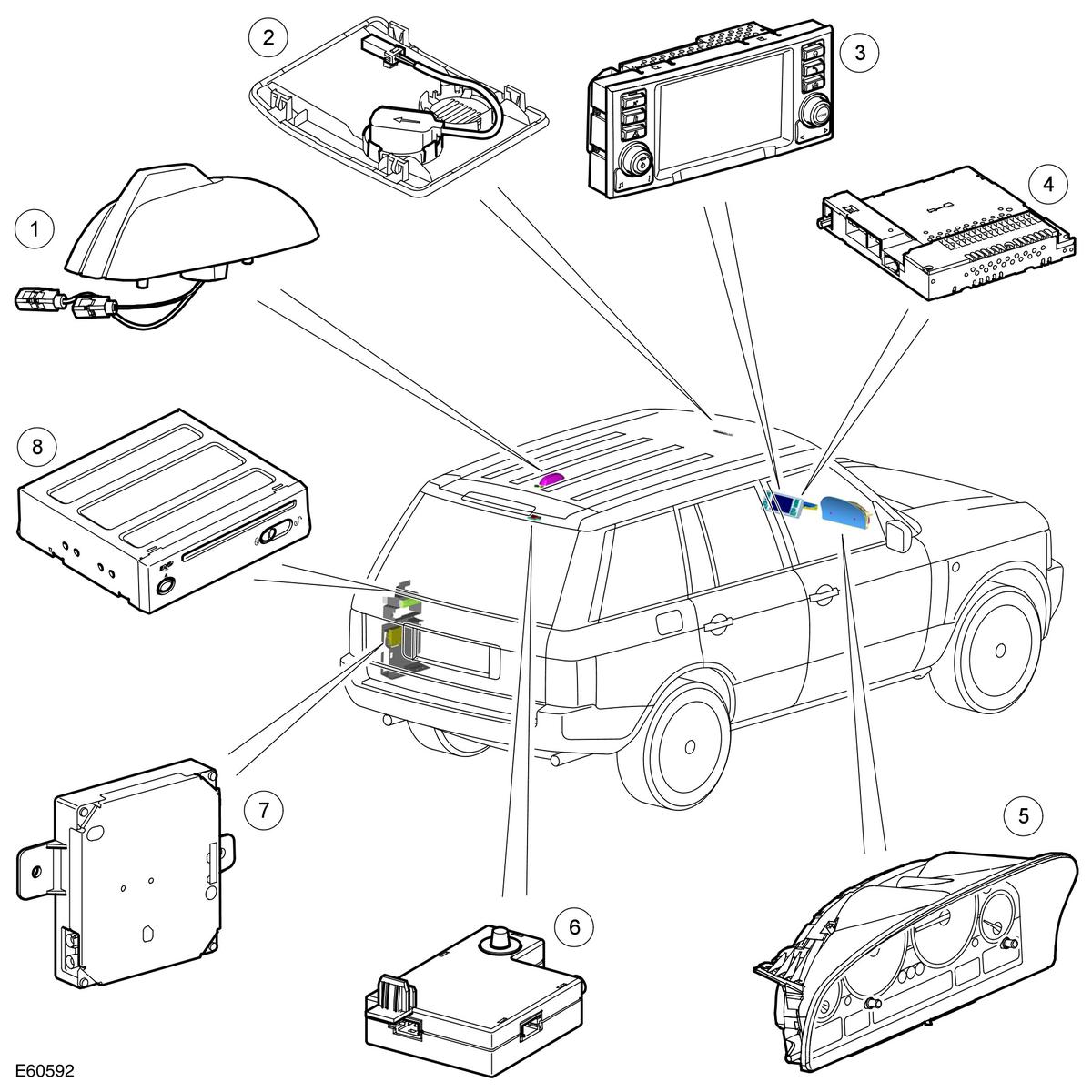

Navigation System Component Location (Except Japan)
WARNING: This page is about a different car, the 2009 Land Rover Range Rover, 2008 Land Rover Range Rover, and 2007 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Roof pod (global positioning system (GPS) antenna) |
| 2 |
Microphone - Voice recognition |
| 3 |
Touch Screen Display (TSD) |
| 4 |
Integrated Head Unit (IHU) |
| 5 |
Instrument cluster |
| 6 |
Traffic Message Channel (TMC) tuner |
| 7 |
TMC antenna amplifier |
| 8 |
Navigation computer |
