Steering Angle
WARNING: This page is about a different car, the 2009 Land Rover Range Rover, 2008 Land Rover Range Rover, and 2007 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

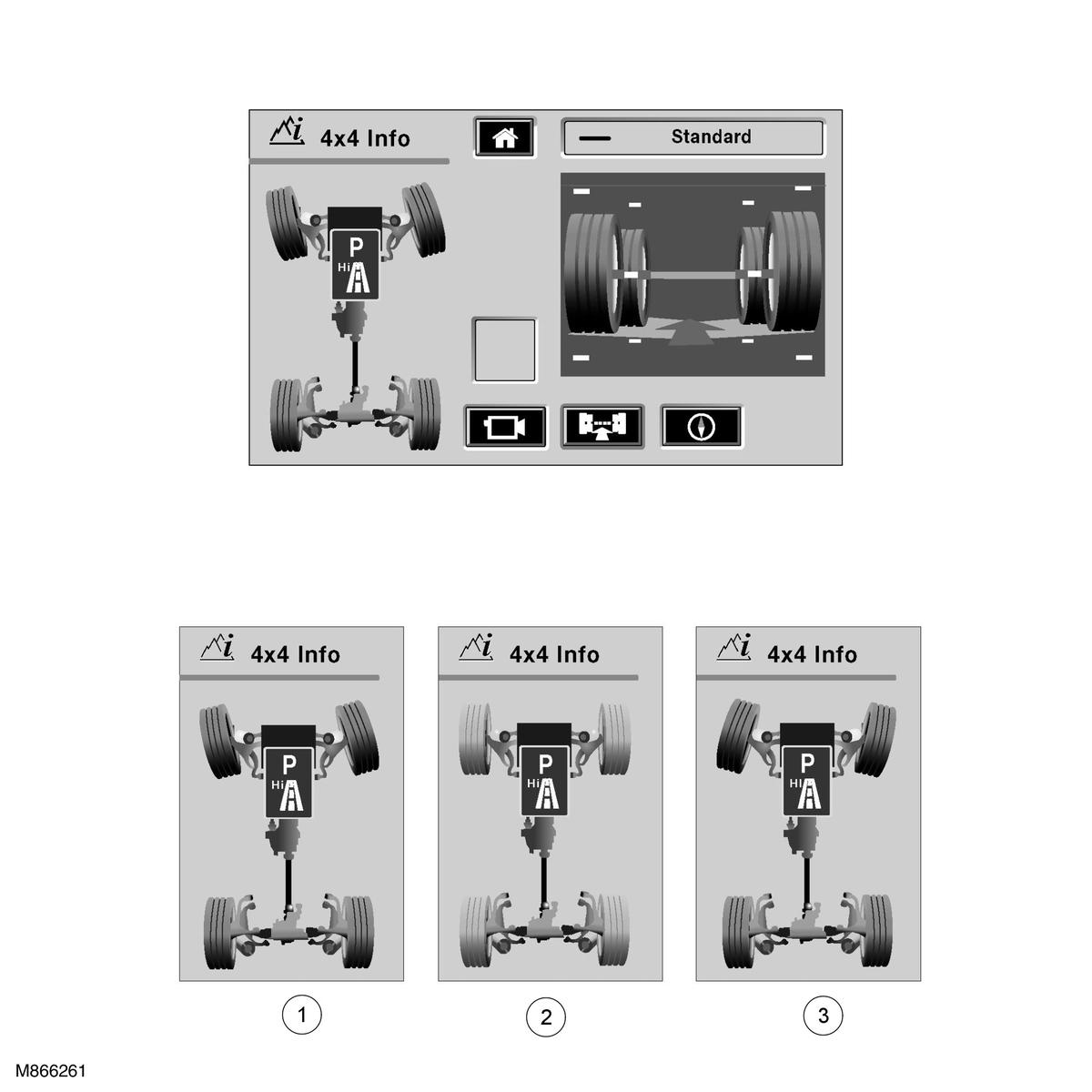

| Item Number | Description |
|---|---|
| 1 | Steering in left hand turn |
| 2 | Steering in straight ahead |
| 3 | Steering in right hand turn |
The steering angle is obtained from information broadcast by the steering angle sensor on the controller area network (CAN). The sensor signal is used to display the orientation of the steered wheels in relation to a plan view of the chassis layout. The steering angle is displayed by one of thirteen graphics to show the full range of steering angle from lock to lock in increments of 5 degrees from the straight ahead position.
