Air Suspension
WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

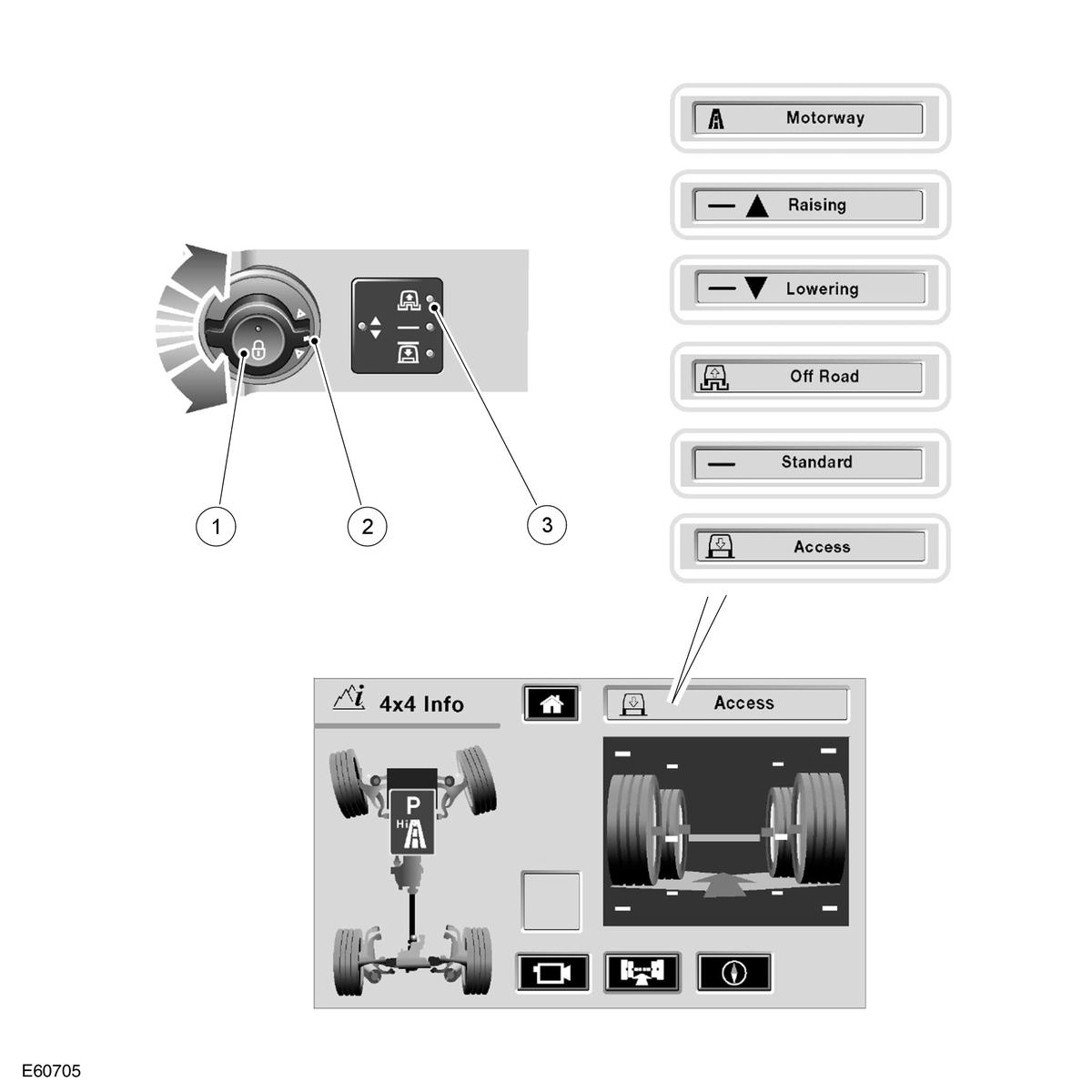

| Item Number | Description |
|---|---|
| 1 | Air suspension hold switch |
| 2 | Air suspension height selection switch |
| 3 | Air suspension mode display |
The air suspension status information is obtained from information broadcast on the controller area network (CAN) by the air suspension control module. The display comprises six different screen displays to show all air suspension height states and transition states. During a height change the arrow head between the wheels flashes. The green line denotes the suspension position above, below or at the standard height setting. The selected height is confirmed by a symbol and text confirming the suspension status.
