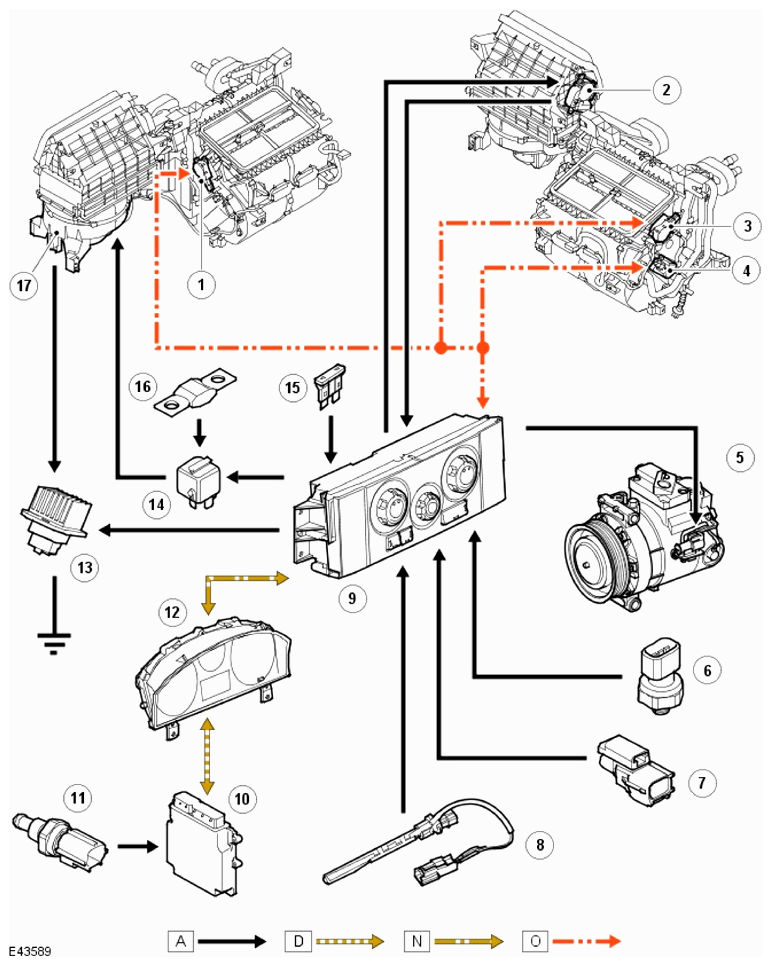

Manual System Control Diagram
NOTE:
A = Hardwired connections; D = High speed CAN bus; N = Medium speed CAN bus; O = LIN bus
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Face and feet distribution door motor |
| 2 | - | Recirculation door motor |
| 3 | - | Windshield distribution door motor |
| 4 | - | Temperature blend motor |
| 5 | - | A/C compressor solenoid valve |
| 6 | - | Refrigerant pressure sensor |
| 7 | - | Ambient air temperature sensor |
| 8 | - | Evaporator temperature sensor |
| 9 | - | ATC module |
| 10 | - | ECM |
| 11 | - | engine coolant temperature (ECT) sensor |
| 12 | - | Instrument cluster |
| 13 | - | Blower control module |
| 14 | - | Blower relay |
| 15 | - | Fuse 51P, CJB (permanent battery power feed) |
| 16 | - | Fusible link 12E, BJB |
| 17 | - | Blower |
