Ambient Air Temperature Sensor: Removal

  1. Remove the radiator grille.

    For additional information, refer to: Radiator Grille information.

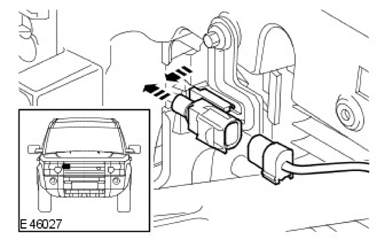

  2. Remove the ambient air temperature sensor.
    • Disconnect the electrical connector.
    • Release the clip.
      G08766652
