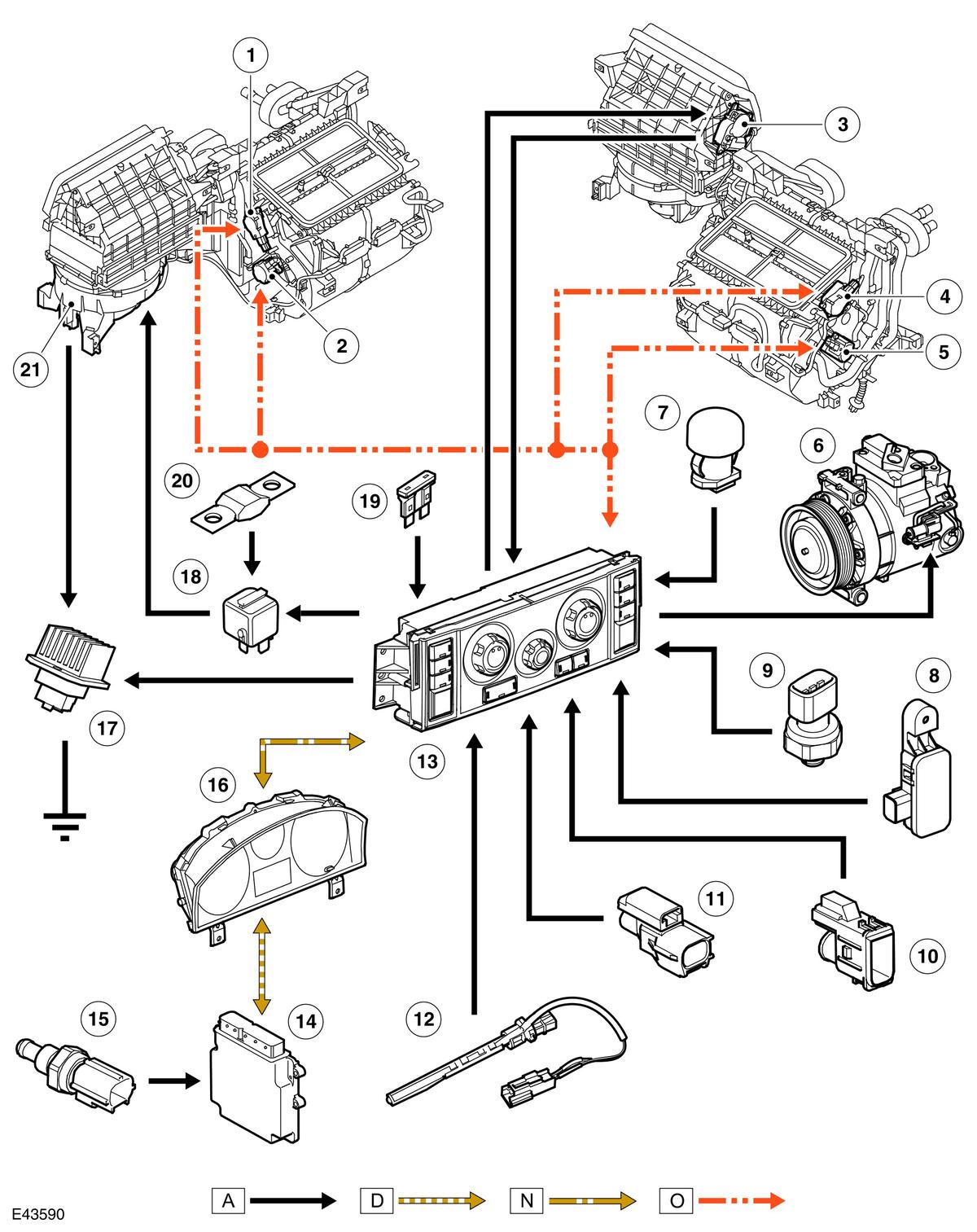

Control Diagram
WARNING: This page is about a different car, the 2006 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired connections; D = High speed CAN bus; N = Medium speed CAN bus; O = LIN bus
| Item Number | Description |
|---|---|
| 1 | Face and feet distribution motor |
| 2 | temperature blend motor |
| 3 | Recirculation motor |
| 4 | Windshield distribution motor |
| 5 | temperature blend motor |
| 6 | Air conditioning compressor solenoid valve |
| 7 | Sunlight sensor |
| 8 | Pollution sensor |
| 9 | Refrigerant pressure sensor |
| 10 | In-vehicle temperature sensor (all except Japan) or in-vehicle temperature and humidity sensor (Japan only) |
| 11 | Ambient air temperature sensor |
| 12 | Evaporator temperature sensor |
| 13 | module |
| 14 | |
| 15 | sensor |
| 16 | Instrument cluster |
| 17 | Blower control module |
| 18 | Blower relay |
| 19 | Fuse 51P, |
| 20 | Fusible link 12E, |
| 21 | Blower |
