Speed Control Module: Removal

WARNING: This page is about a different car, the 2006 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to Specifications .
  2. Remove the Dynamic Response module. Refer to Dynamic Response Module .

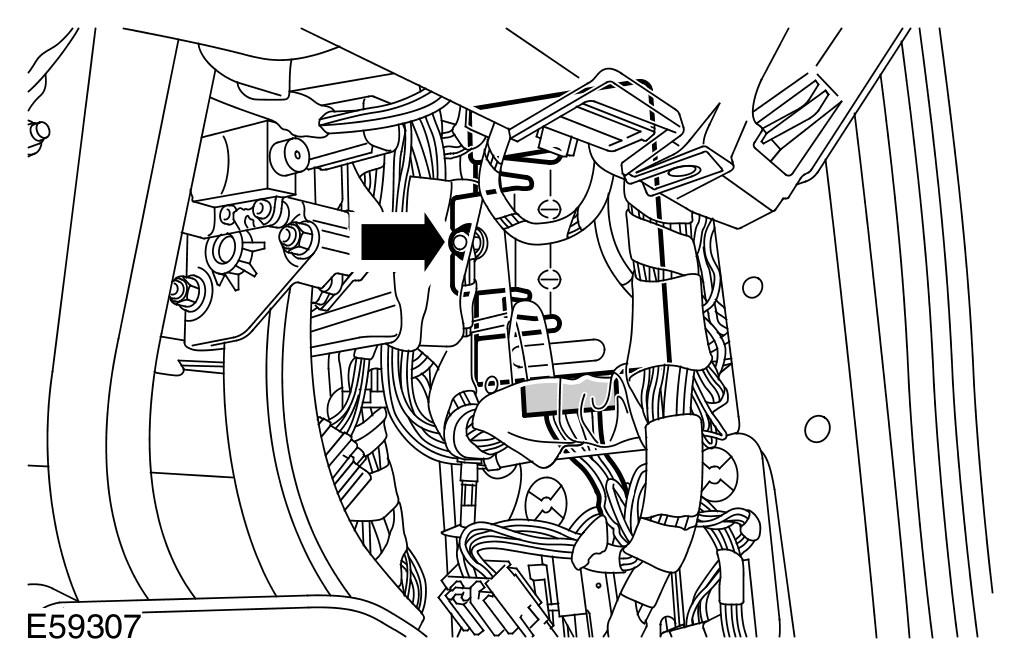

  3. Remove the speed control module.
    • Loosen the bolt.
    • Release and disconnect the electrical connector.
    GJ0019968
