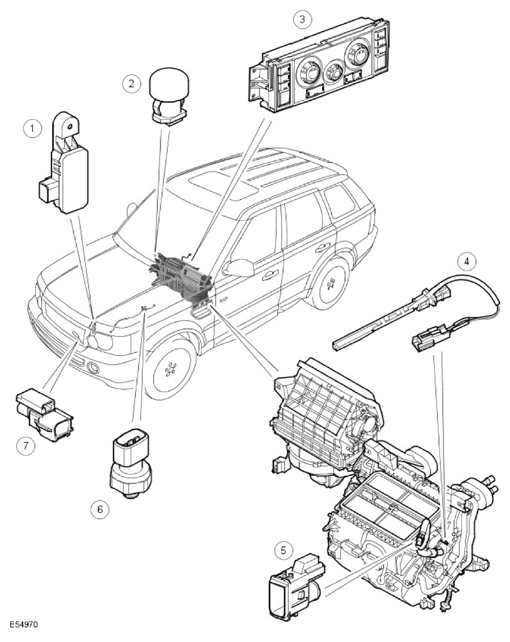

Component Locations
NOTE:
right-hand drive (RHD) installation shown; left-hand drive (LHD) installation similar
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Pollution sensor (Japan only) |
| 2 | - | Sunlight sensor |
| 3 | - | automatic temperature control (ATC) module |
| 4 | - | Evaporator temperature sensor |
| 5 | - | In-vehicle temperature sensor (all except Japan), or in-vehicle temperature and humidity sensor (Japan only) |
| 6 | - | Refrigerant pressure sensor |
| 7 | - | Ambient air temperature sensor |
