Component Location
WARNING: This page is about a different car, the 2012 Land Rover Range Rover Sport and 2011 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.

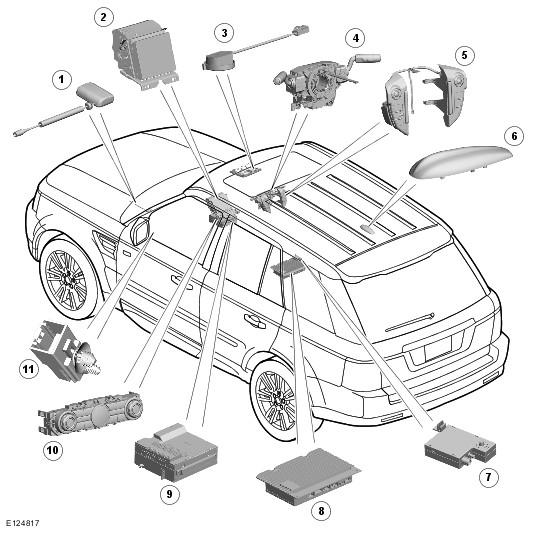

| Item Number | Description |
|---|---|
| 1 | VICS (vehicle information and communication system) beacon antenna - Japan only |
| 2 | TSD (touch screen display) |
| 3 | Microphone - voice recognition |
| 4 | Clockspring |
| 5 | Steering wheel switches |
| 6 | Roof pod incorporating GPS (global positioning system) antenna |
| 7 | 'TMC (traffic message channel) tuner' or 'VICS receiver - Japan only' |
| 8 | Power amplifier |
| 9 | IHU (integrated head unit) |
| 10 | Integrated control panel, incorporating navigation switch |
| 11 | Navigation update socket |
