Description & Operation: Notes
WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

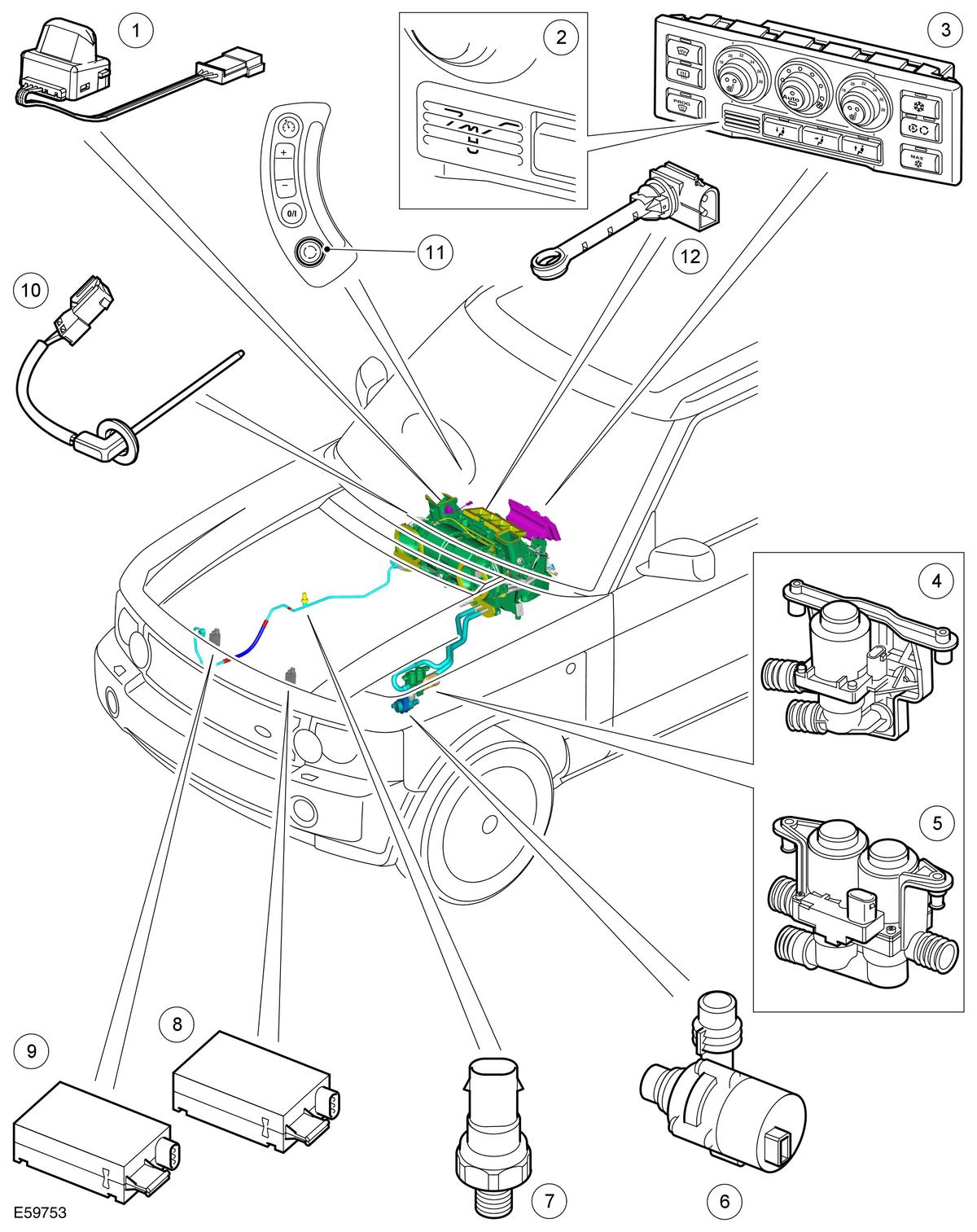

| Item Number | Description |
|---|---|
| 1 | Sunlight sensor (automatic system only) |
| 2 | In-vehicle temperature sensor |
| 3 | module (automatic version shown) |
| 4 | Single coolant valve (manual system only) |
| 5 | Dual coolant valve (automatic system only) |
| 6 | Auxiliary coolant pump |
| 7 | Refrigerant pressure sensor |
| 8 | Pollution sensor, 3.0L Diesel models (automatic system only) |
| 9 | Pollution sensor, 4.2L and 4.4L models (automatic system only) |
| 10 | Evaporator temperature sensor |
| 11 | Steering wheel recirculation switch (where fitted) |
| 12 | Heater temperature sensor (on manual system, and on automatic system) |
