Transceiver Module: Removal
WARNING: This page is about a different car, the 2006 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the RH lower rear quarter trim panel. For additional information, refer to: Rear Quarter Trim Panel

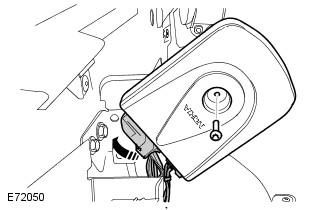

- Remove the cellular phone module.
- Remove the Torx bolt.
- Disconnect the 2 electrical connectors.
CAUTION:
Cover fibre optic cable connectors to minimize dust ingress and avoid bending the cables in a radius of less than 30 mm.
