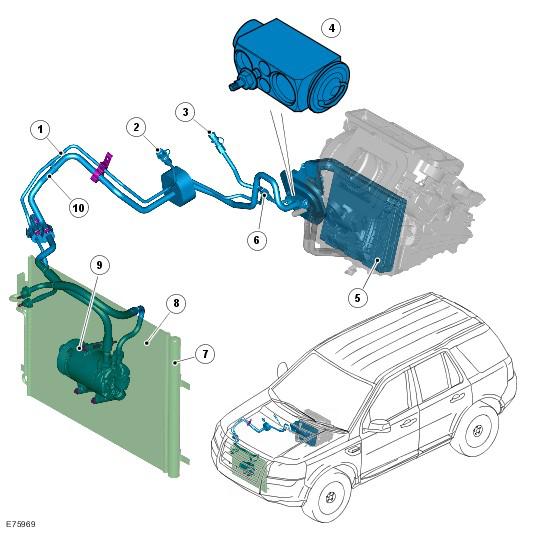

| 1 |
High pressure line |
| 2 |
High pressure servicing connection |
| 3 |
Low pressure servicing connection |
| 4 |
Thermostatic expansion valve |
| 5 |
Evaporator |
| 6 |
Refrigerant pressure sensor |
| 7 |
Receiver/Drier |
| 8 |
Condenser |
| 9 |
Air Conditioning (A/C) compressor |
| 10 |
Low pressure line |
