Engine Performance
›
Mode 6 Data
›
Mode 6 Data
Mode 6 Data

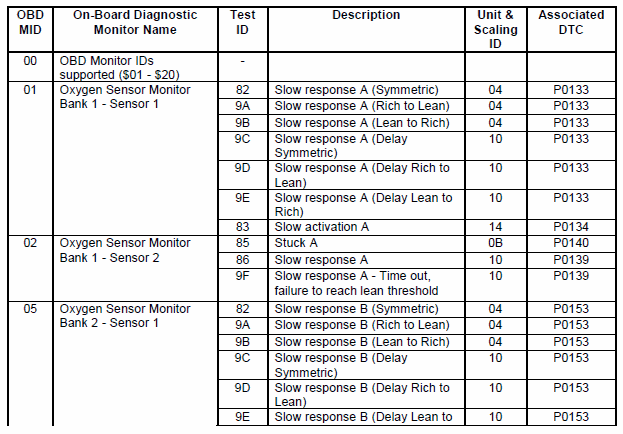

Fig 1: Mode 6 Data (1 Of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

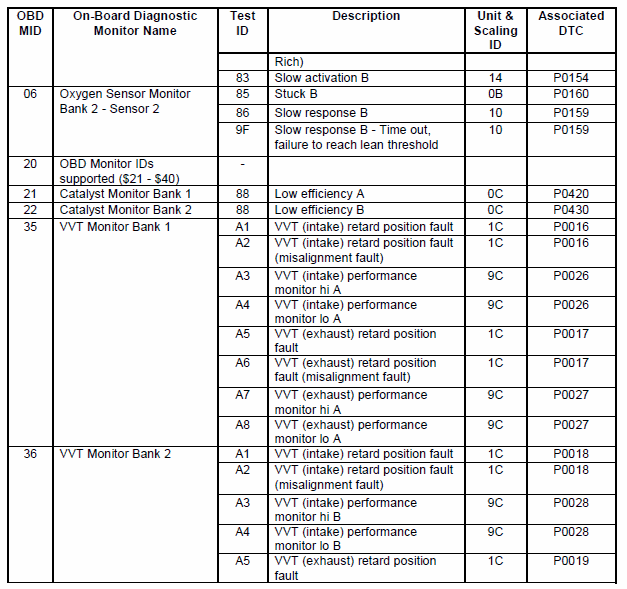

Fig 2: Mode 6 Data (2 Of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

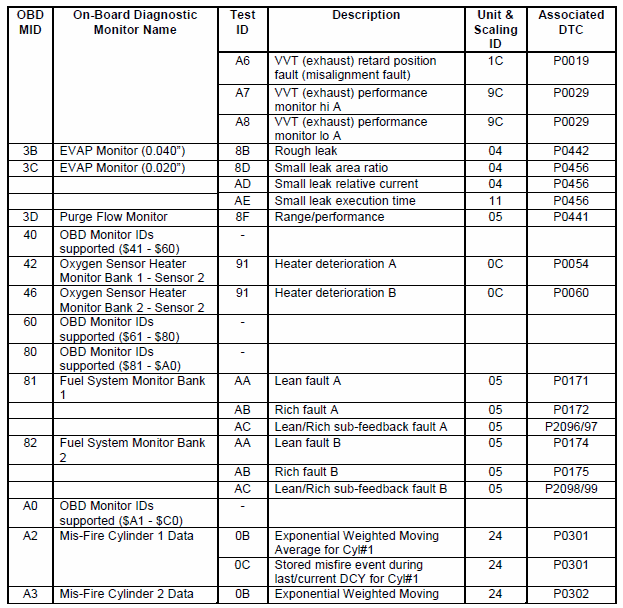

Fig 3: Mode 6 Data (3 Of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

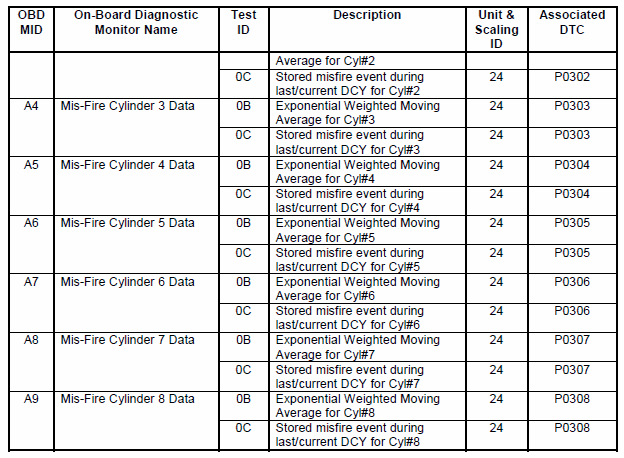

Fig 4: Mode 6 Data (4 Of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
