Steering Wheel: Installation

All vehicles

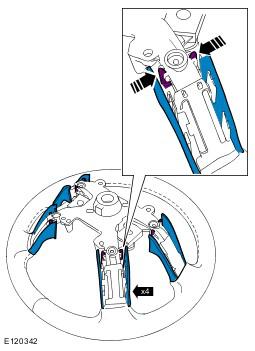

1. See figure
2. See figure
3. See figure
4. See figure

Vehicles with 4.4L diesel engine

5. See figure
6. See figure

Right-hand drive vehicles

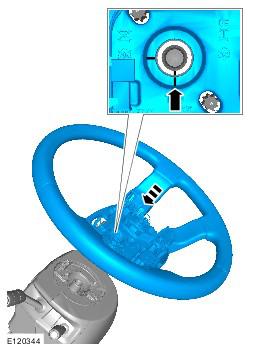

7. See figure
   CAUTION: Make sure that the wheels and tires are in the straight-ahead position. Failure to follow this instruction may result in damage to the components.
   CAUTION: RHD vehicles: With the wheels and tires in the straight-ahead position, the bottom timing mark on the steering column must be aligned with the steering wheel mark, see graphic below.

Left-hand drive vehicles

8. See figure
   CAUTION: Make sure that the wheels and tires are in the straight-ahead position. Failure to follow this instruction may result in damage to the components.
   CAUTION: LHD vehicles: With the wheels and tires in the straight-ahead position, the bottom timing mark on the steering column must be aligned with the steering wheel mark, see graphic below.

All vehicles

9. Torque: 63 Nm
10. Install the driver air bag module. Refer to Driver Air Bag Module .
11. Connect the battery ground cable. Refer to Specifications .
