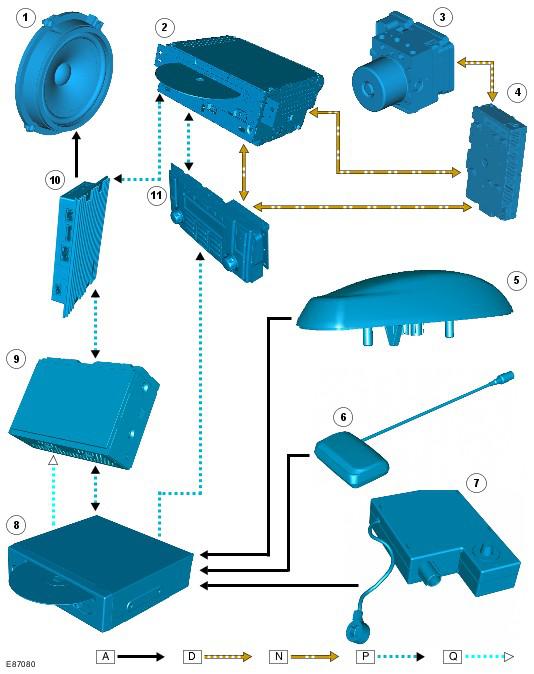

Control Diagram
| Item Number | Description |
|---|---|
| 1 | Speakers |
| 2 | Integrated audio module |
| 3 | Anti-lock brake system (ABS) control module |
| 4 | Central junction box (CJB) |
| 5 | Global positioning system (GPS) antenna |
| 6 | Vehicle Information and Communication System (VICS) beacon antenna - Japan only |
| 7 | Traffic Message Channel (TMC) antenna amplifier - Europe only |
| 8 | Navigation computer |
| 9 | Touch screen display (TSD) |
| 10 | Audio amplifier |
| 11 | Infotainment control module (ICM) |
NOTE:
A
= Hardwired; D
= High speed CAN bus; N
= Medium speed CAN bus; P
= MOST; Q
= GVIF
