Front Seat: Removal
WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.
WARNING:
Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.
- Make the SRS system safe. Refer to Standard Workshop Practices article.
- Release the front seat.

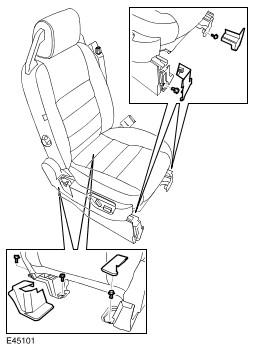

- Remove the bolt covers.
- Remove and the 5 Torx bolts.
- Release the safety belt lower anchor from the seat.
- Remove the bolt cover.
- Passenger side, disconnect the electrical connector.
- Remove and discard the Torx bolt.
- With assistance, remove the front seat.
- Protect the rocker panel.
- Remove the bolt.
- Disconnect the 2 electrical connectors.
- Release the 2 wiring harness clips.
NOTE:
Torx bolts may be re-used.
