Third Row Seat: Removal

WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Third row seats must be removed as a pair.

Remove the loadspace compartment anchors.
- Remove the 4 Torx bolts.
Remove the loadspace trim panels.
- Release from the 4 clips.

NOTE: Torx bolts may be re-used.

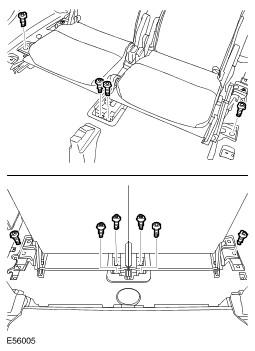

Remove the third row seats.
- Release the trim cover.
- Remove the 10 Torx bolts.

NOTE: Do not disassemble further if the component is removed for access only.

Separate the third row seats.
- Remove the seat frame finisher.
- Drill out the 6 rivets.
- Remove the 2 brackets.
