Video Display: Removal

WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.

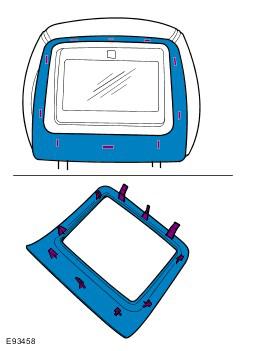

  1. Remove the screen surround.
    GJ0015945
  2. Release the video display.
    • Remove the 3 Torx screws.
    GJ0015946
  3. Remove the video display.
    • Disconnect the electrical connector.
    GJ0015947
