General Procedures: Activation

WARNING: This page is about a different car, the 2018 Jaguar XF, 2017 Jaguar XF, and 2016 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

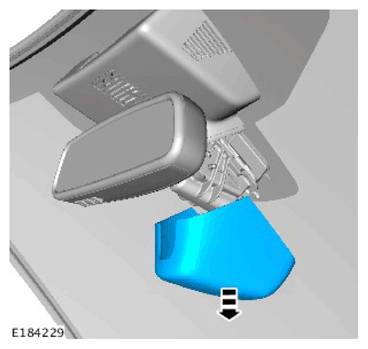

  1. G11330597

    Remove the interior rear view mirror lower trim.

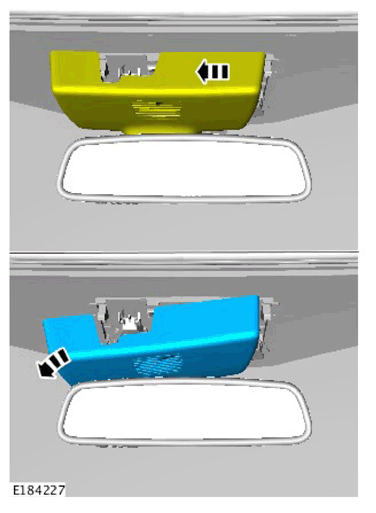

  2. G11330598

    Remove the interior rear view mirror upper trim.

  3. CAUTION: Make sure the wiring harness and electrical connector is not damaged during this operation.

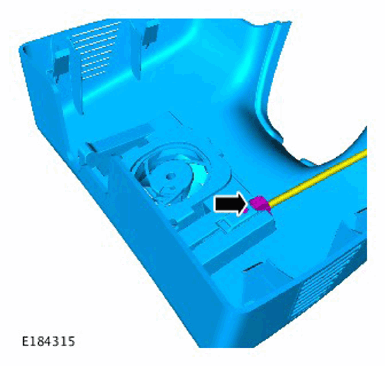

    G11330599

    Disconnect the IPCM fan motor electrical connector.

  4. CAUTION: Make sure the wiring harness and electrical connector is not damaged during this operation.

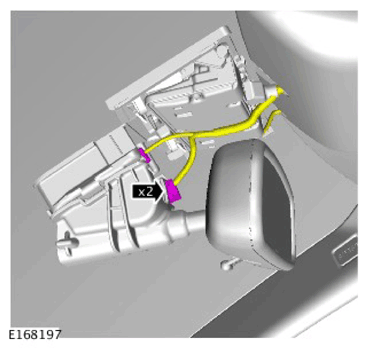

    G11330600

    Disconnect the interior rear view mirror electrical wiring harness.

  5. NOTE: Some components shown removed for clarity.

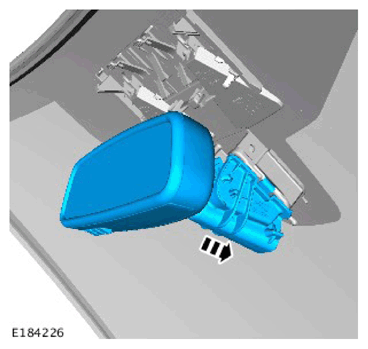

    G11330601

    Remove the interior rear view mirror.

  6. NOTE: Before inspection of the IPCM mounting bracket, the attached movie file must be viewed.
    multimedia:A supplement to the article is available.

    If the IPCM mounting bracket is securely fastened to the windscreen as shown in the attached animation, continue to Step  8.

  7. NOTE: Before inspection of the IPCM mounting bracket, the attached movie file must be viewed.
    multimedia:A supplement to the article is available.

    If either side of the IPCM has become detached from the windscreen as shown in the attached animation, continue to Step  9.

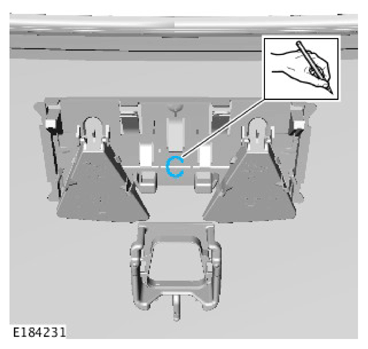

  8. G11330604

    Using a china graph pencil, mark the IPCM mounting bracket as 'checked'. Reverse steps 1-5 to install.

  9. CAUTION: Make sure the wiring harness and electrical connector is not damaged during this operation.

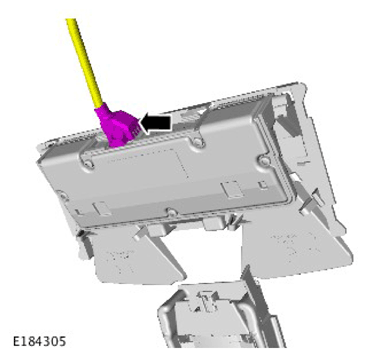

    G11330605

    Disconnect the IPCM electrical wiring harness.

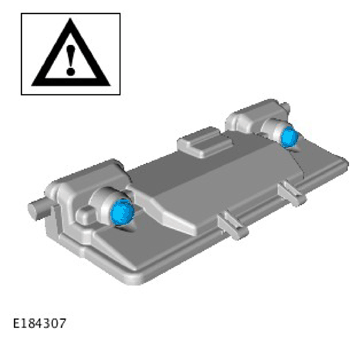

  10. G11330606

    The IPCM lenses must not be touched during the removal process.

  11. CAUTION: Make sure that the IPCM lenses are not touched during the removal.

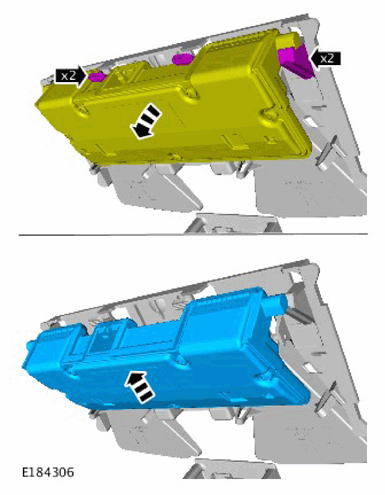

    G11330607

    Remove the IPCM.

  12. NOTE: Repeat the operation for the other side.

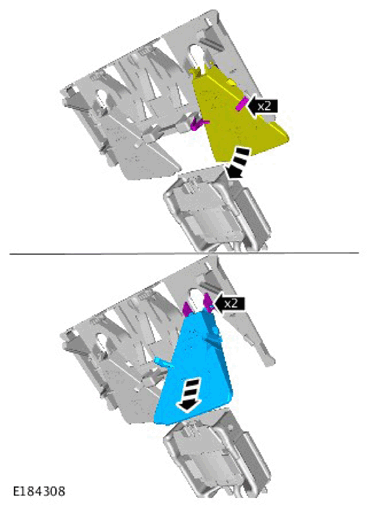

    G11330608

    Remove the IPCM light trap.

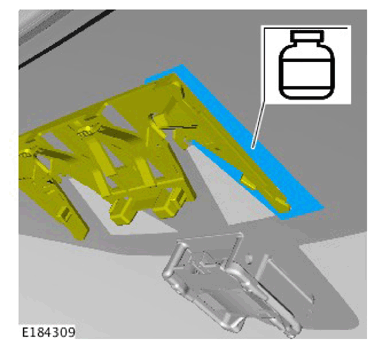

  13. G11330609
    1. Position the IPCM mounting bracket to one side.
    2. Apply the activator to the windscreen in the area indicated by the illustration.

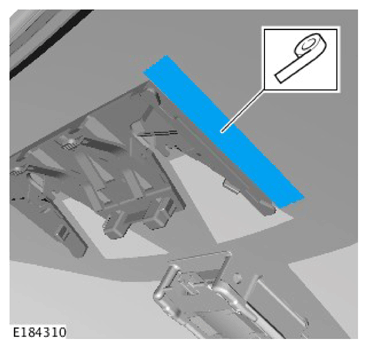

  14. G11330610

    Apply tape to the windscreen in the area indicated by the illustration.

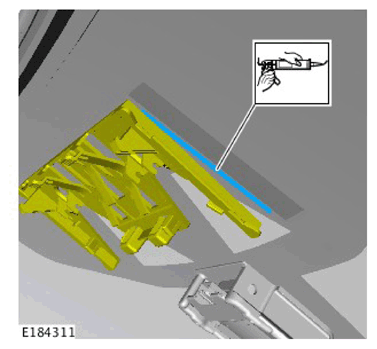

  15. G11330611

    Lift the IPCM bracket, then apply the adhesive to the windscreen in the area indicated by the illustration.

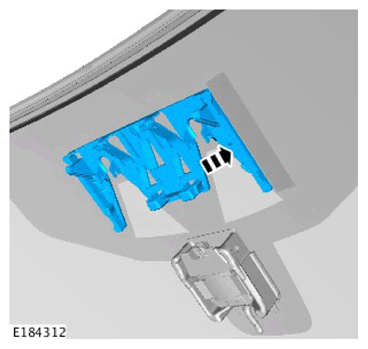

  16. G11330612

    Apply pressure to the IPCM mounting bracket.

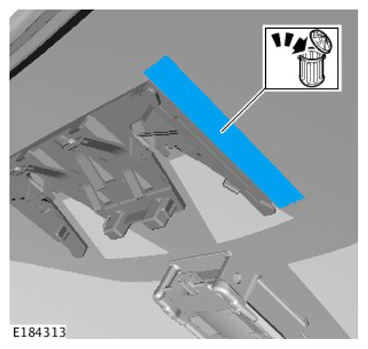

  17. G11330613

    Remove and discard the tape.

  18. CAUTION: The adhesive must be left for 24 hours to cure before removing the tape.

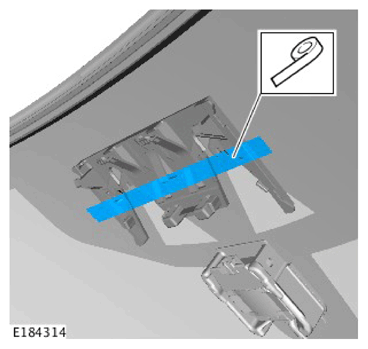

    G11330614

    Install tape to the IPCM mounting bracket to hold it in place.

  19. NOTE: Check the IPCM camera view to the front is clear of windscreen adhesive.

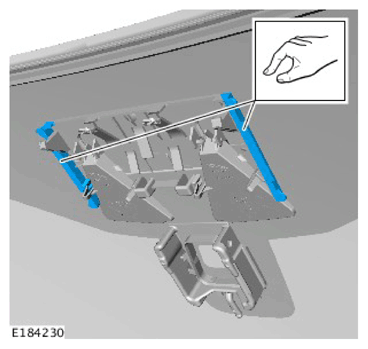

    G11330602

    Check the IPCM mounting bracket is secure.

  20. Reverse steps 1-5 to install.
