Removal And Installation: Removal
WARNING: This page is about a different car, the 2018 Jaguar XF, 2017 Jaguar XF, and 2016 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The pedestrian protection system control module is an integral component of the restraint control module (RCM) and cannot be serviced separately.
- Make the air bag supplemental restraint system (SRS) safe. Refer to: Supplemental Restraint System (SRS) Health and Safety Precautions .
- Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect .
- Refer to: Floor Console .

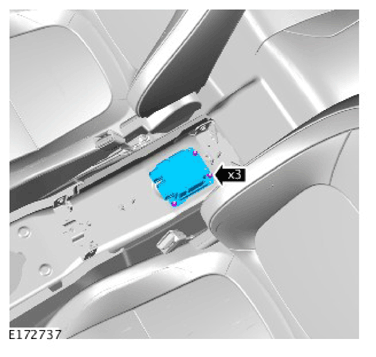

Torque Specification: 11 Nm
