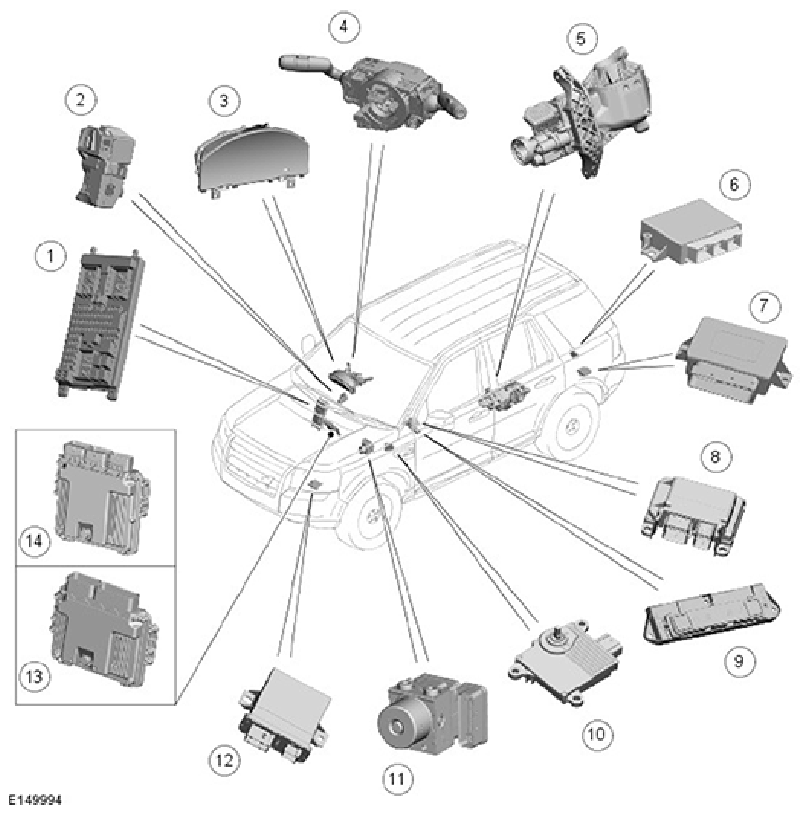

Component Location - High Speed CAN BUS
WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | CJB |
| 2 | Electric Steering Column Lock (ESCL) |
| 3 | IC |
| 4 | Clockspring |
| 5 | Rear Differential Control Module (RDCM) |
| 6 | Park Distance Control Module (PDCM) |
| 7 | Electric Park Brake Control Module (EPBCM) |
| 8 | Restraints Control Module (RCM) |
| 9 | Terrain Response (TR) switchpack (AWD only) |
| 10 | TCM (Automatic transmission only) |
| 11 | Anti-Lock Brake System (ABS) control module |
| 12 | Headlamp Leveling Control Module (HLCM) |
| 13 | ECM - GTDi 2.0L PETROL |
| 14 | ECM - TD4 2.2L DIESEL |
