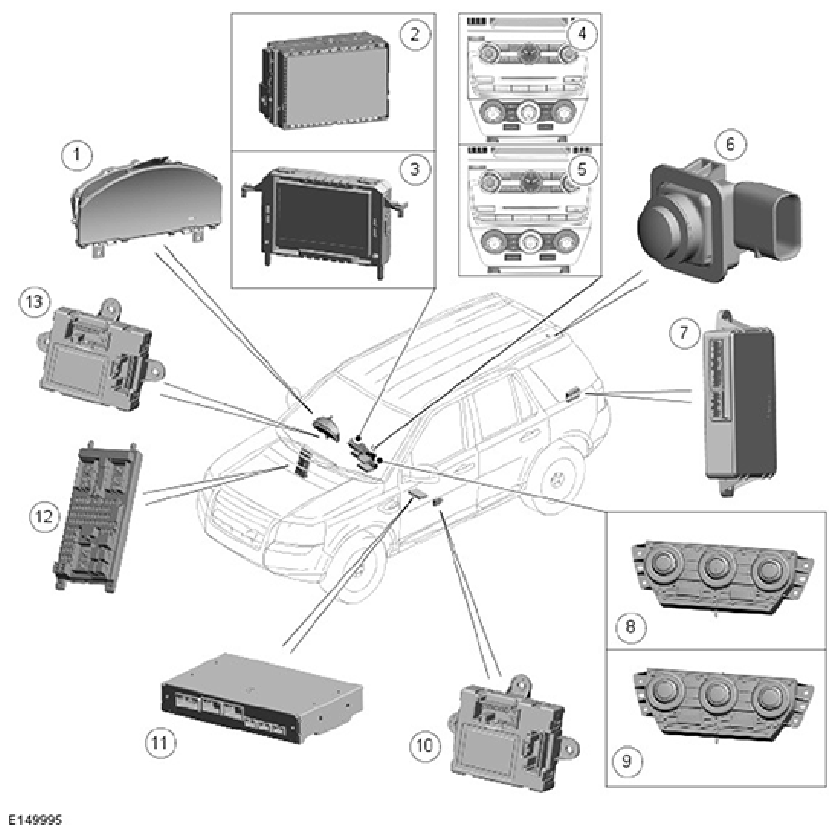

Component Location - Medium Speed CAN BUS
WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | IC |
| 2 | Touch Screen (TS) (Hi-line only) |
| 3 | Multi-Function Display (MFD) (Lo-line only) |
| 4 | Integrated Control Panel (ICP) - Hi-line |
| 5 | ICP - Lo-line |
| 6 | Rear View Camera (RVC) |
| 7 | Keyless Vehicle Module (KVM) |
| 8 | ATC module - Hi-line |
| 9 | ATC module - Lo-line |
| 10 | PDM |
| 11 | Telephone Interface Module (TIM) |
| 12 | CJB |
| 13 | DDM |
