Mode 6 - Land Rover: 2.0L

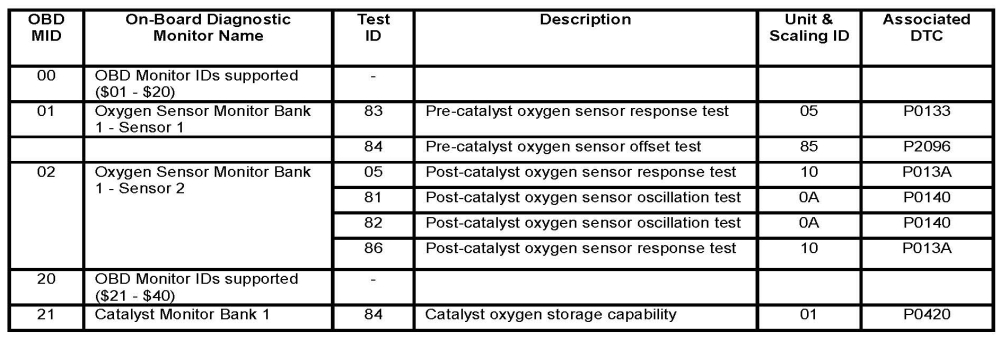

Fig 1: Mode 6 Data - 2.0L (1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

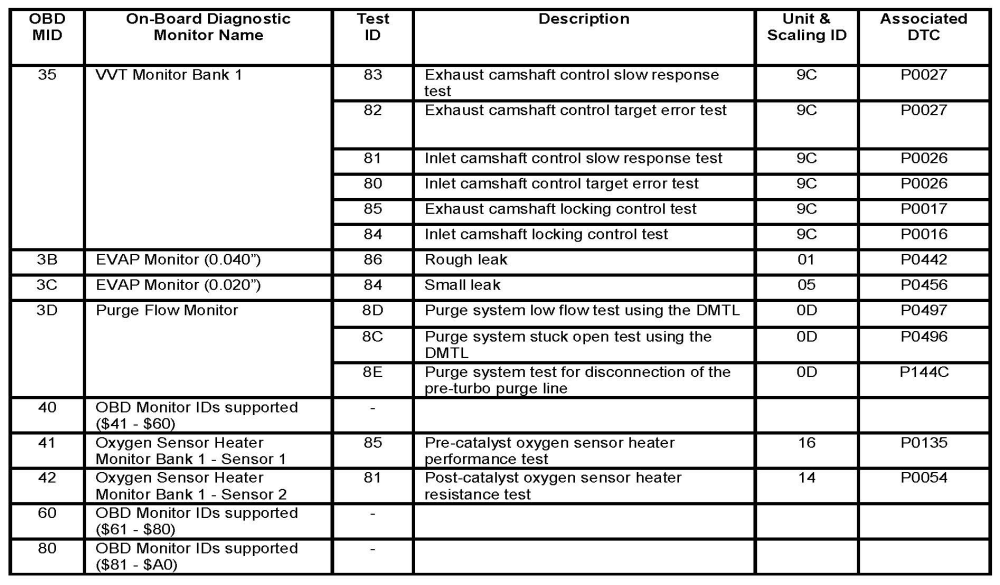

Fig 2: Mode 6 Data - 2.0L (2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

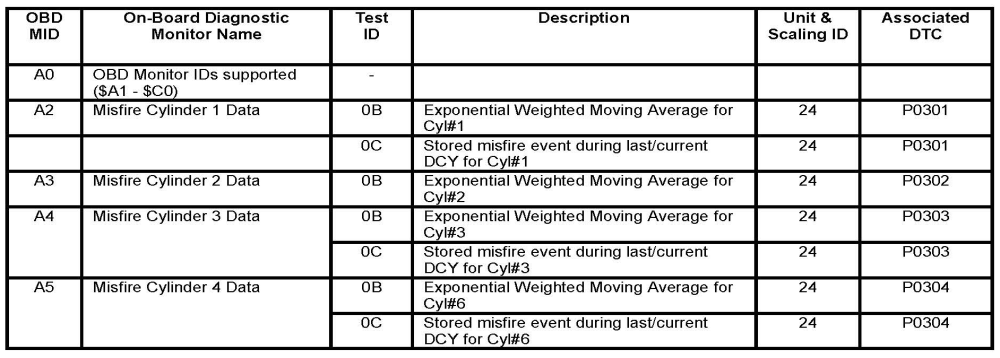

Fig 3: Mode 6 Data - 2.0L (3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.
