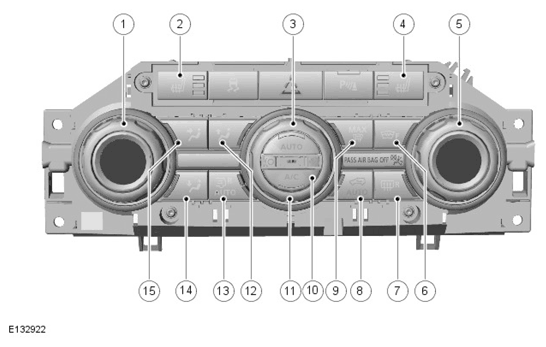

Center Instrument Panel Switch Pack

The switches on the Center instrument panel switch pack  have the following functions:

• LH and RH Temperature Switches:  Adjusts the nominal temperature settings of the LH and RH sides of the passenger compartment. The switch can rotate through 270°, between full cold and full hot. The switch surrounds are graduated in 2° increments between 16 and 28 ° C. Minor detents define 1 °C steps over the range of the switch. Amber LED (light emitting diode)s in the switch surround illuminate to indicate the temperature setting. When maximum cold is selected, the ATC module also automatically sets the air source to recirculated air, blower speed to maximum and distribution to face. When maximum hot is selected, the ATC module also automatically sets the air source to fresh air, blower speed to maximum and distribution to footwell.
• LH and RH Seat Heater Switches:  Activates the heater elements in the seat cushion and seat back at one of two heat levels. The first press of the switch energizes the heater elements at the higher heat setting and illuminates two LEDs in the switch. A second press of the switch sets the heater elements to the lower heat setting and extinguishes one of the LEDs. A further press of the switch de-energizes the heater elements and extinguishes the second LED. The seat heaters remain on until selected off or the engine is turned off.
• Blower Switch:  For manual adjustment of blower speed. The switch can rotate through 240°, from off to maximum speed. Eight primary detents define the off position and seven blower speeds. Minor detents define small steps between the primary detents. When blower speed is manually adjusted, amber LEDs in the switch surround illuminate to indicate the selected blower speed. The LEDs remain off when blower speed is under automatic control.
• Automatic Mode Switch:  Activates the automatic modes for the A/C system, blower speed and distribution. Separate amber LEDs in the automatic mode switch illuminate to show when the blower and the distribution are in automatic mode. Manually selecting the blower speed or a distribution switch extinguishes the related LED.
• A/C control switch:  Controls activation of the A/C compressor. Allows the A/C compressor to be selected off for economy operation. A LED switch is illuminated when the A/C compressor is selected on.
• Defrost program switch:  Activates a program that automatically selects: inlet air to fresh air; distribution to screen only; blower to speed 5; rear screen heater on; windshield heater on (where fitted), A/C system to automatic mode. An amber LED in the switch is illuminated while the defrost program is active.
• Heated windshield switch:  Energizes the windshield heater for a set time period, until the switch is pressed again or until the engine stops, whichever occurs first. An amber LED in the switch is illuminated while the heater is on.
• Heated rear window switch:  Enabled only with the engine running. Pressing the switch energizes the rear window heater for a set time period, until the switch is pressed again or until the engine stops, whichever occurs first. An amber LED in the switch is illuminated while the heater is on.
• Air recirculation switch:  For selection of fresh or recirculated air. On models without pollution sensing, an amber LED in the switch is illuminated when recirculated air is selected. On models with pollution sensing, the recirculation switch incorporates two amber LED. The first press of the switch sets the recirculation flaps to automatic mode and illuminates one LED. A second press of the switch manually selects recirculated air and illuminates the second LED. A further press of the switch manually selects fresh air and extinguishes the two LEDs.
• Distribution Switches (Windshield, Face and Footwell):  For manual selection of air distribution in any combination of windshield, face and footwell outlets. Each switch has a LED which illuminates when the related distribution mode is selected.
