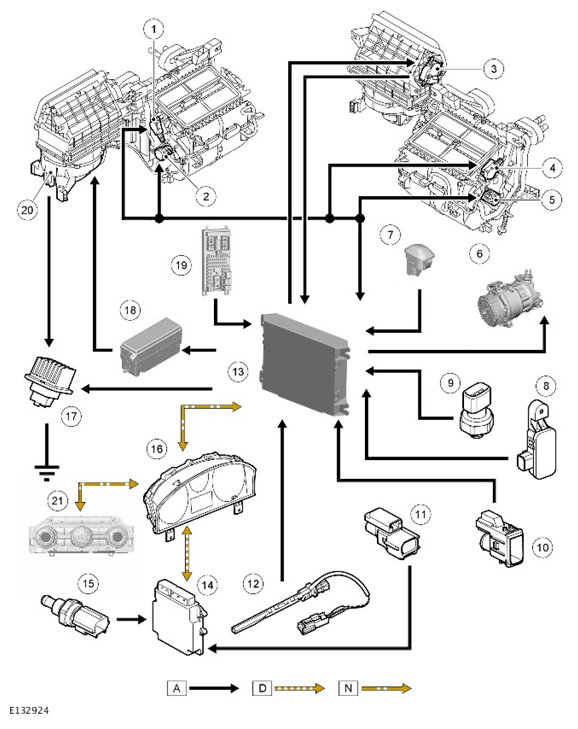

Control Diagram
WARNING: This page is about a different car, the 2016 Land Rover LR4, 2015 Land Rover LR4, and 2014 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired connections; D
= High speed CAN bus; N
= Medium speed CAN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Face and feet distribution motor |
| 2 | LH temperature blend motor |
| 3 | Recirculation motor |
| 4 | Windshield distribution motor |
| 5 | RH temperature blend motor |
| 6 | A/C compressor solenoid valve |
| 7 | Sunlight sensor |
| 8 | Pollution sensor |
| 9 | Refrigerant pressure sensor |
| 10 | In-vehicle temperature sensor (all except Japan) or in-vehicle temperature and humidity sensor (Japan only) |
| 11 | Ambient air temperature sensor |
| 12 | Evaporator temperature sensor |
| 13 | ATC module |
| 14 | ECM |
| 15 | ECT sensor |
| 16 | Instrument cluster |
| 17 | Blower control module |
| 18 | BJB |
| 19 | CJB |
| 20 | Blower |
| 21 | Center instrument panel switch pack |
