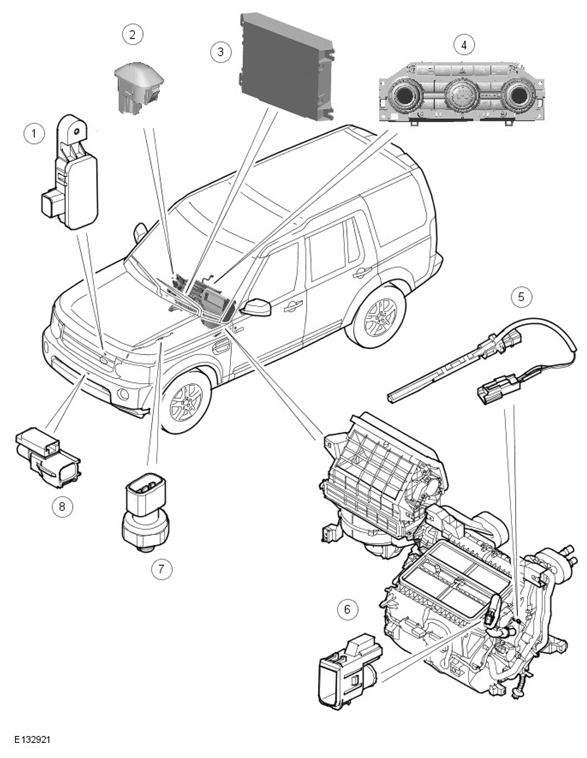

Component Locations: Notes
WARNING: This page is about a different car, the 2016 Land Rover LR4, 2015 Land Rover LR4, and 2014 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RHD (right-hand drive) installation shown; LHD (left-hand drive) installation similar
| ITEM | DESCRIPTION |
|---|---|
| 1 | Pollution sensor (Japan only) |
| 2 | Sunlight sensor |
| 3 | ATC (automatic temperature control) module |
| 4 | Center instrument panel switch pack |
| 5 | Evaporator temperature sensor |
| 6 | In-vehicle temperature sensor (all except Japan), or in-vehicle temperature and humidity sensor (Japan only) |
| 7 | Refrigerant pressure sensor |
| 8 | Ambient air temperature sensor |
