Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Land Rover LR4, 2015 Land Rover LR4, and 2014 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully extend the steering column for access.

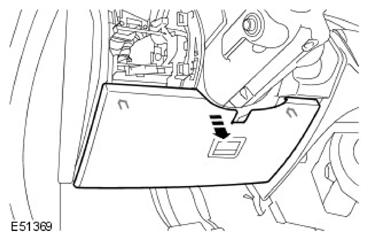

  2. G11597308

    Remove the instrument panel access panel.

    • Release the 2 clips.

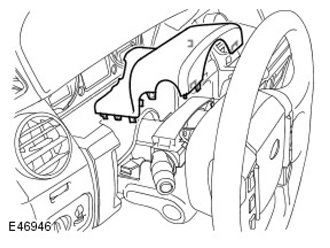

  3. G11600852

    Remove the steering column upper shroud.

    • Release the 6 clips.

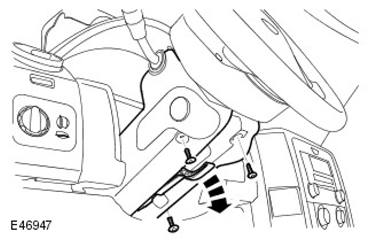

  4. G11600853

    Remove the steering column lower shroud.

    • Remove the 3 Torx screws.
    • Release the steering column adjustment lever.

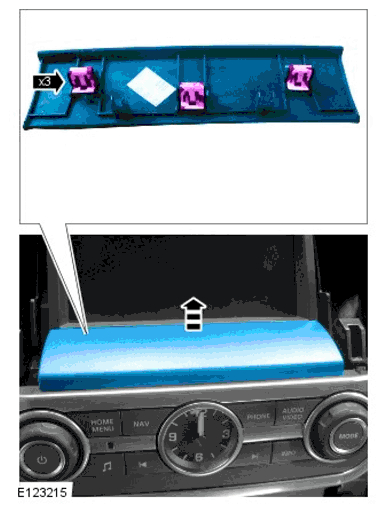

  5. G11600854

    Remove the center console upper finisher trim.

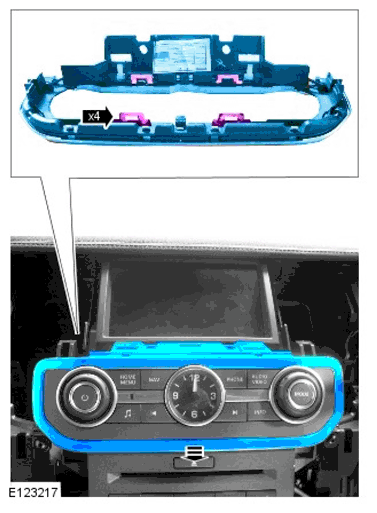

  6. G11600855

    Remove the audio unit bezel.

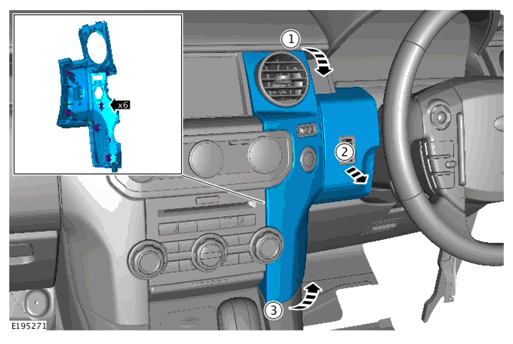

  7. G11600856

    Remove the instrument panel center finisher as shown.

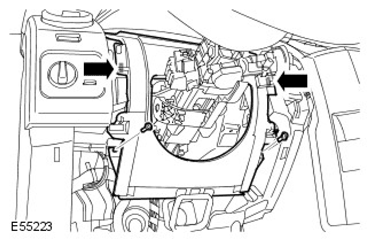

  8. G11600857

    Release the steering column gaiter panel.

    • Remove the 2 Torx screws.
    • Release the 2 clips.

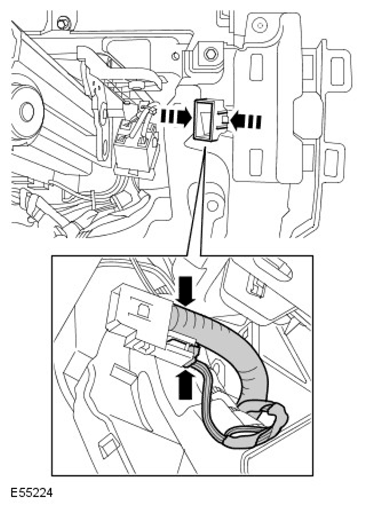

  9. G11600858

    Remove the in-vehicle temperature sensor.

    • Release the 2 clips.
    • Disconnect the electrical connector.
    • Disconnect the hose.
