Mongoose Device Compliancy With 14MY Vehicles (SSM71976)

Publication date: 2014-09-10
Reference number: SSM71976

MONGOOSE DEVICE COMPLIANCY WITH 14MY VEHICLES

TECHNICAL SERVICE BULLETIN

Reference Number(s): SSM71976, Date of Issue: September 10, 2014

LAND ROVER:	Discovery 4/L319, Freelander 2/L359, Range Rover/L405, Range Rover Sport/L494, Defender/L316, Range Rover Evoque/L538
CATEGORY:	Diagnostic Software Hardware

SERVICE INFORMATION

Symptom 000101 Diagnostic Concerns

Attachments 14MY Mongoose - Yellow Text.jpg (14MY%20Mongoose%20-%20Yellow%20Text.jpg), Non 14MY Mongoose - Silver Text.JPG (Non%2014MY%20Mongoose%20-%20Silver%20Text.JPG)

CONCERN

Content

Mongoose device compliancy with 14MY vehicles.

ACTION

If your workshop uses a Drewtech Mongoose Vehicle Communication Interface (VCI) Device:

Make sure your workshop has the correct latest level Mongoose hardware for use with SDD and 14MY Vehicles. Check the device for 14MY vehicle compliance as stated below:

14MY VEHICLE COMPLIANT

ONLY the Mongoose VCI devices with the word 'Mongoose' displayed in 'Yellow' colour text on the device MUST be used with Symptom Driven Diagnostics (SDD) on 14MY vehicles onwards.

(See attached image: 14MY Mongoose - Yellow Text.jpg)

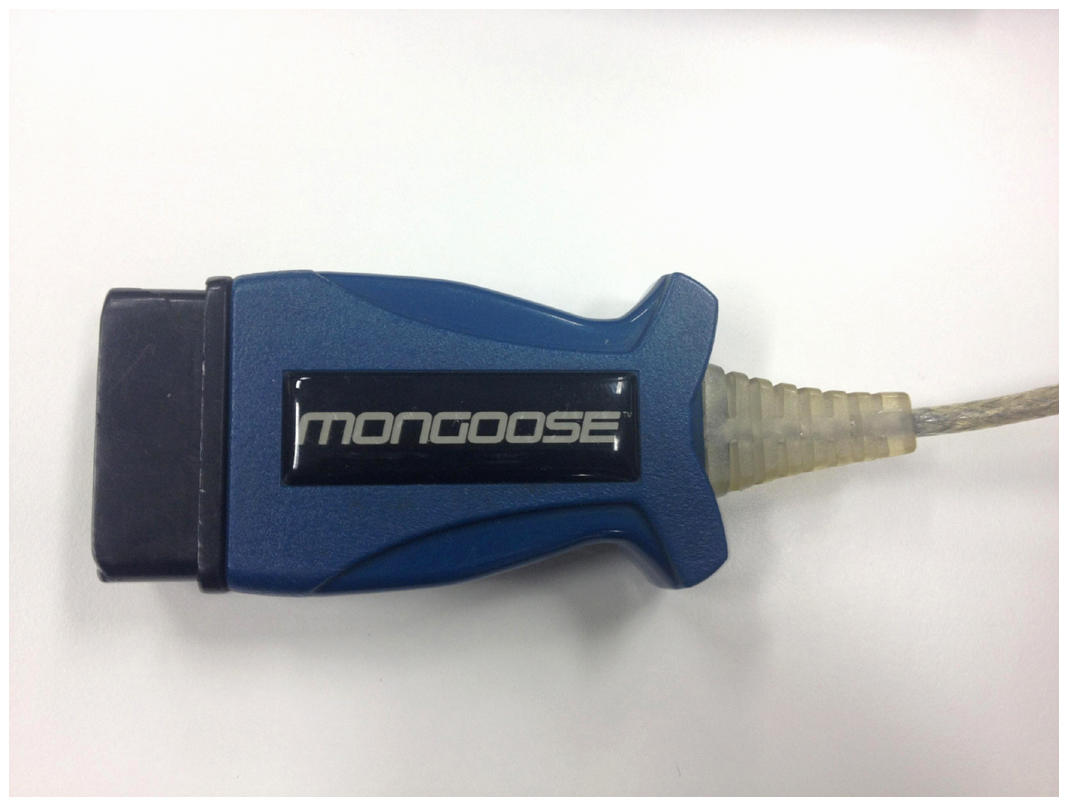

14MY VEHICLE NON COMPLIANT

Mongoose VCI devices with the word 'Mongoose' displayed in 'Silver' colour text on the device MUST NOT be used with SDD on 14MY vehicles onwards.

(See attached image: Non 14MY Mongoose - Silver Text)

SOLUTION

Dealers can purchase the new 14MY compliant Mongoose VCI device from the 'Jaguar Land Rover Equipment Workshop' website. This is accessible from the 'Links' - found on the TOPIx front web page.
