Audio Unit: Removal

WARNING: This page is about a different car, the 2012 Land Rover Range Rover Sport and 2011 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

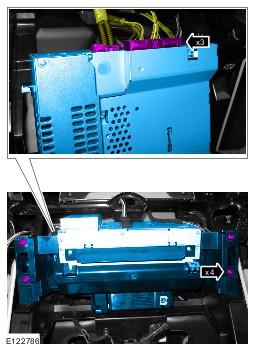

See figure

Courtesy of JAGUAR CARS, INC.
See figure

Courtesy of JAGUAR CARS, INC.
See figure

Courtesy of JAGUAR CARS, INC.
Torque: 2.5 Nm

Courtesy of JAGUAR CARS, INC.
See figure

Courtesy of JAGUAR CARS, INC.
See figure

Courtesy of JAGUAR CARS, INC.
Torque: 2.5 Nm

Courtesy of JAGUAR CARS, INC.
Torque: 2.5 Nm

Courtesy of JAGUAR CARS, INC.

NOTE: Do not disassemble further if the component is removed for access only.

Torque: 2.5 Nm
