Removal And Installation: Removal

NOTE:
  • LHD shown, RHD is similar.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: BATTERY DISCONNECT / CONNECT .

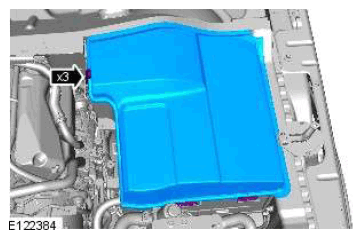

  2. G11607538

    Remove drivers side plenum box lid.

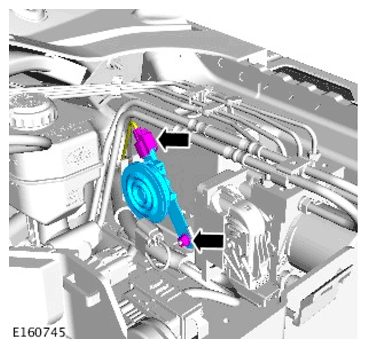

  3. G11599981

    Torque Specification: 9 Nm

  4. NOTE: Some components shown removed for clarity.

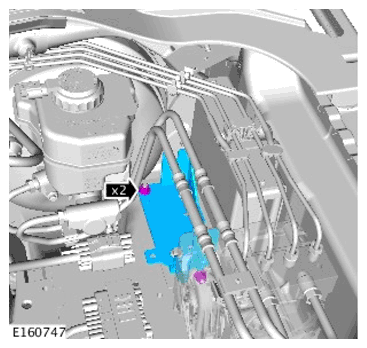

    G11599982

    Torque Specification: 9 Nm

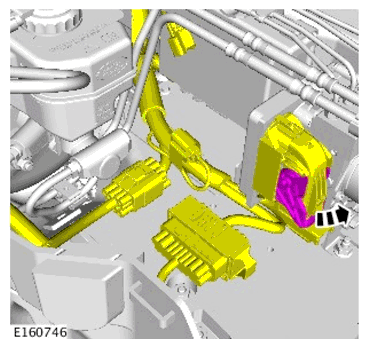

  5. G11599983

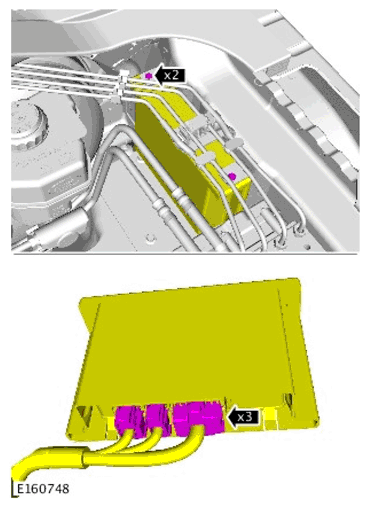

  6. G11599984

    Torque Specification: 1.6 Nm

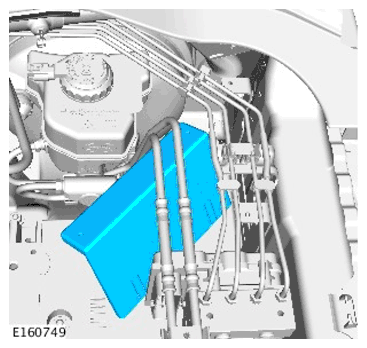

  7. G11599985

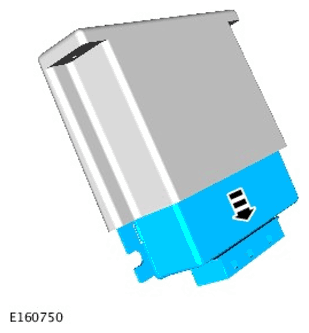

  8. G11599986
