Lower Interactive Control Display Module Delaminating (LTB01160NAS3)

WARNING: This page is about the Range Rover Velar R-Dynamic HSE, 2.0L Eng VIN N, which is a different variant/trim than selected.
Publication date: 2019-02-21
Reference number: LTB01160NAS3
Supersedes refnos: LTB01160NAS1, LTB01160NAS2

LOWER INTERACTIVE CONTROL DISPLAY MODULE DELAMINATING

LOWER INTERACTIVE CONTROL DISPLAY MODULE DELAMINATING

TECHNICAL SERVICE BULLETIN

Reference Number(s): LTB01160NAS3, Date of Issue:  February 21, 2019
LAND ROVER: 2018 Range Rover Velar (LY), Range Rover Sport (LW), Range Rover (LG)
SECTION: 412-01

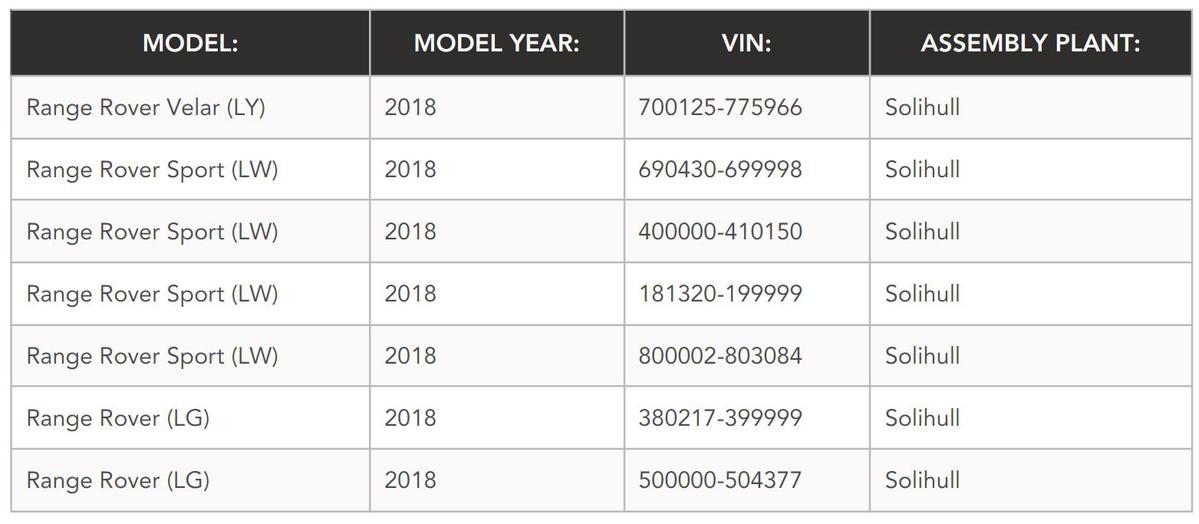

AFFECTED VEHICLE RANGE: See The Chart Below

AFFECTED VEHICLE RANGE

G00580157

MARKETS

NORTH AMERICA

CONDITION SUMMARY

SITUATION:

The lower Interactive Control Display Module (ICDM) may delaminate.

CAUSE:

This may be caused by contamination of the module/panel.

ACTION:

Should a customer express this concern, follow the Workshop Procedure and Diagnostic Procedure below.

PARTS

PARTS INFORMATION

PART NUMBER DESCRIPTION QUANTITY
LR090931 Interactive Control Display Module (ICDM) - Lower 1
LR099149 Interactive Control Display Module (ICDM) - Lower - Instrument Panel insert - Textured black, Metallic finish 1
LR106586 Interactive Control Display Module (ICDM) - Lower - Instrument Panel insert - Dark brushed aluminum, Satin brushed aluminum 1

TOOLS

TOOLS INFORMATION

G12285702
 Jaguar Land Rover-approved Midtronics battery power supply
G12285703
 Jaguar Land Rover-approved diagnostic tool with latest PATHFINDER software

WARRANTY

NOTE:
  • Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Use TOPIx to obtain the latest repair time.
  • The JLR claims submission system requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
WARRANTY INFORMATION

DESCRIPTION SRO TIME (HOURS) CONDITION CODE CAUSAL PART
Interactive Control Display Module (ICDM) - Lower - Renew - Range Rover Velar (L560) 87.01.64 0.8 49 LR090931
Interactive Control Display Module (ICDM) - Lower - Renew - Range Rover Sport (L494) 87.01.64 0.9 49 LR090931
Interactive Control Display Module (ICDM) - Lower - Renew - Range Rover (L405; Standard Wheelbase) 87.01.64 1.0 49 LR090931
Interactive Control Display Module (ICDM) - Lower - Renew - Range Rover (L405; Long Wheelbase) 87.01.64 1.1 49 LR090931
Interactive Control Display Module (ICDM) - Update ECU 86.95.04 0.3 49 LR090931
Interactive Display Module A (IDMA) - Update ECU - With diagnostic equipment already connected 86.95.05.01 0.1 49 LR090931
NOTE: Normal Warranty procedures apply.

WORKSHOP PROCEDURE

  1. Range Rover Velar (L560):  renew the Interactive Control Display Module (ICDM) -Lower (refer to TOPIx Workshop Manual section 412-01: Climate Control - Removal and installation - Interactive Control Display Module).
    1. When all tasks are finished, go to the DIAGNOSTIC PROCEDURE  below.

    Range Rover Sport (L494), Range Rover (L405):  renew the Interactive Control Display Module (ICDM) - Lower (refer to TOPIx Workshop Manual section 412-01: Climate Control - Removal and installation - Lower Interactive Control Display Module).

    1. When all tasks are finished, go to the DIAGNOSTIC PROCEDURE  below.

DIAGNOSTIC PROCEDURE

CAUTION:
  • A Jaguar Land Rover-approved Midtronics battery power supply must be connected to the vehicle startup battery during diagnosis/module programming.
  • All ignition ON/OFF requests must be performed; failure to do this may cause damage to control modules in the vehicle.
  1. Connect the Jaguar Land Rover-approved Midtronics battery power supply to the vehicle startup battery.
  2. NOTE: The diagnostic tool must be loaded with PATHFINDER version 218 (or later).

    Connect the Jaguar Land Rover-approved diagnostic tool to the vehicle and begin a new session.

  3. NOTE: The Jaguar Land Rover-approved diagnostic tool will read the correct Vehicle Identification Number (VIN) for the current vehicle and automatically take the vehicle out of Transit mode if required.

    Follow all on-screen instructions.

  4. Select ECU Diagnostics  .
  5. Select Interactive Control Display Module [ICDM]  .
  6. Select Update ECU  .
    1. Follow all on-screen instructions until the application finishes successfully.
    2. Go to the next Step.
  7. Select the 'back'  button to return to the previous menu.
  8. Select Interactive Display Module 'A' [IDMA].
  9. NOTE: If the 'Update ECU' option is grayed out, the software is at the latest level and an update is not required.

    Select Update ECU  .

    1. Follow all on-screen instructions until the application finishes successfully.
    2. Go to the next Step.
  10. Exit the current session.
    1. If required, set the vehicle to Transit mode  .
    2. Select the Exit  icon.
  11. Disconnect the diagnostic tool and battery power supply from the vehicle.
