Climate Control Temperature Distribution Issues (LTB01159NAS1)
WARNING: This page is about the Range Rover Velar R-Dynamic HSE, 2.0L Eng VIN N, which is a different variant/trim than selected.
Publication date: 2018-03-13Reference number: LTB01159NAS1
CLIMATE CONTROL TEMPERATURE DISTRIBUTION ISSUES
TECHNICAL SERVICE BULLETIN
Reference Number(s): LTB01159NAS1, Date of Issue:
13 MAR 2018
| LAND ROVER: | 2018 Range Rover Velar (LY) |
| SECTION: | 412-01: Climate Control |
| AFFECTED VEHICLE RANGE: | Range Rover Velar (LY) MODEL YEAR: 2018 VIN: 700000-739080 ASSEMBLY PLANT: Solihull APPLICABILITY: Vehicles Without: Auxiliary Climate Control |
MARKETS
NORTH AMERICA
CONDITION SUMMARY
SITUATION:
The temperature of the air blowing through the rear air vents may be noticeably higher than the air blowing through any other air vents, affecting the ability to set a constant comfortable temperature within the passenger compartment.
CAUSE:
This may be caused by the required components not being installed within the floor console during vehicle production.
ACTION:
Should a customer express this concern, follow the Workshop Procedure below.
PARTS
PARTS INFORMATION
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| LR110139 | Foam insert | 2 |
TOOLS
Refer to Workshop Manual for any required special tools.
WARRANTY
NOTE:
- Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to JLR claims submission system to obtain the latest repair time.
- The JLR Claims Submission System requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
| DESCRIPTION | SRO | TIME (HOURS) | CONDITION CODE | CAUSAL PART |
|---|---|---|---|---|
| Install foam insert | 80.15.89.25 | 0.20 | 42 | LR093354 |
NOTE:
Normal Warranty procedures apply.
SERVICE INSTRUCTION
- Remove the rear integrated control panel (refer to the TOPIx Workshop Manual section 412-01: Climate Control - Removal and Installation - Rear Integrated Control Panel - Removal steps 1-4 only).
-

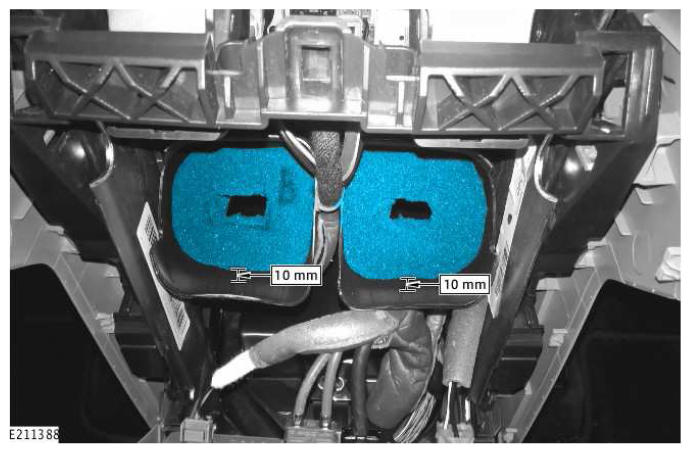

NOTE: Measure from the flat edge of the footwell air duct.
Install 1 foam baffle into each footwell air duct.
- Install the rear integrated control panel (refer to the TOPIx Workshop Manual section 412-01: Climate Control - Removal and Installation - Rear Integrated Control Panel - Installation steps 4-6 only).
