INCORRECT OPERATION OF CLIMATE CONTROL AIR DISTRIBUTION

INCORRECT OPERATION OF CLIMATE CONTROL AIR DISTRIBUTION

TECHNICAL SERVICE BULLETIN

Reference Number(s): JLRTB02059NAS3, Date of Issue:  November 15, 2021
LAND ROVER: All Models
SECTION: 412-01A

MARKETS

NORTH AMERICA

CONDITION SUMMARY

NOTE: Airflow through the windshield demist vents is not affected by this concern.

SITUATION  :

The customer may experience one or both of the following symptoms:

These symptoms may be experienced on the left or the right sides individually but also both sides at the same time.

CAUSE:

The airflow distribution doors have become locked. In some cases, the foam seals on the back of the distribution doors have become detached and trapped the doors.

ACTION  :

Follow the instructions below.

PARTS

PARTS INFORMATION

PART NUMBER DESCRIPTION QUANTITY
Discovery vehicles with full Thin Film Transistor (TFT) Instrument Panel Cluster (IPC) only
LR007641 Retainer 2
Discovery vehicles with partial TFT IPC only
LR059799 Retainer 2
All vehicles
LR149627 Adhesive foam pad 2

WARRANTY

NOTE: * When submitting your Warranty claim within the Warranty portal, use the Condition Code list shown to select the Condition Code which best describes the vehicle defect.
NOTE:
  • Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Use TOPIx to obtain the latest repair time.
  • The JLR claims submission system requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
WARRANTY INFORMATION

DESCRIPTION SRO TIME (HOURS) CONDITION CODE CAUSAL PART
Discovery - JLRTB - Install adhesive foam pad 99.01.32 1.3 * LR149627
Defender - JLRTB - Install adhesive foam pad 99.01.32 0.9 * LR149627
NOTE: Normal Warranty procedures apply.

SERVICE INSTRUCTION

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.

All Vehicles

  1. Make sure the front airflow distribution is set to 'face' before continuing to the next step.
  2. Disconnect the startup battery ground terminal (see TOPIx Workshop Manual section 414-00: Battery and Charging System - General Information - General Procedures).
  3. Remove the instrument panel lower trim for access (see TOPIx Workshop Manual section 501-12: Instrument Panel and Console - Removal and Installation - Instrument Panel Lower Trim).

    Discovery Vehicles Only

  4. Remove the lower glovebox for access (see TOPIx Workshop Manual section 501-12: Instrument Panel and Console - Removal and Installation - Lower Glovebox).

    Defender Vehicles Only

  5. Remove the glovebox for access (see TOPIx Workshop Manual section 501-12: Instrument Panel and Console - Removal and Installation - Glovebox).

    All Vehicles

  6. G14190670

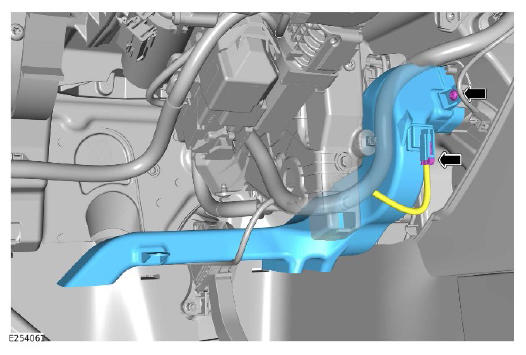

    Remove the left footwell air duct.

    • Disconnect the electrical connector.
    • Remove the screw.
  7. G14190671

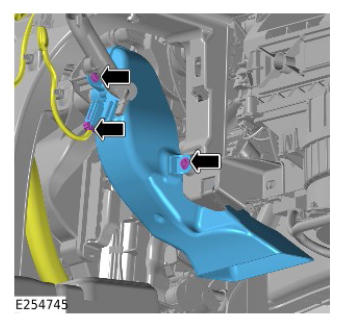

    Remove the right footwell air duct.

    • Disconnect the electrical connector.
    • Remove the 2 screws.
  8. G14190672

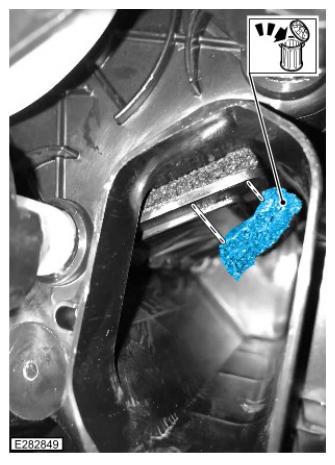

    Remove and discard any adhesive foam pads that have detached from the left and right distribution doors.

  9. G14190673

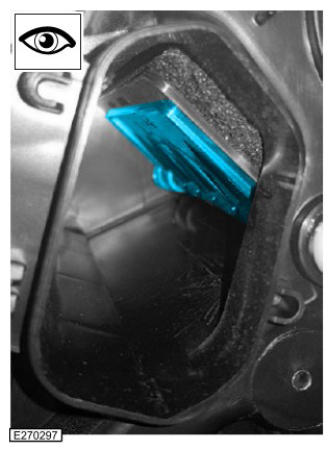

    The illustration shows a distribution door in the 'closed/up' position. If a distribution door is in the 'open/down' position, carefully manually close the distribution door.

  10. G14190674

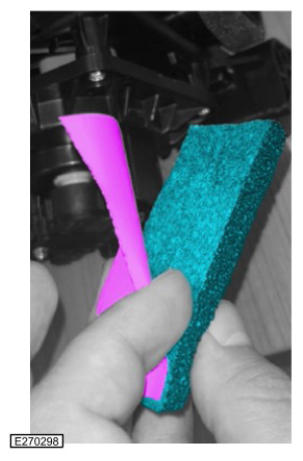

    Remove the protective backing from 1 adhesive foam pad.

  11. NOTE: Make sure the adhesive side of the foam pad is pointing down
    G14190675

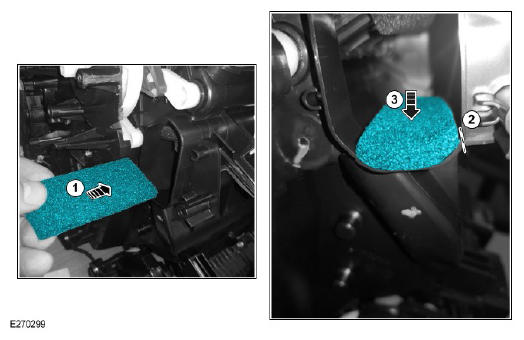

    Install the adhesive foam pad into the left foot duct outlet.

    1. Fully insert the adhesive foam pad until it is flush with the outside edge of the duct outlet.
    2. Align the edge of the adhesive foam pad with the edge of the duct outlet.
    3. Apply firm pressure across the whole adhesive foam pad to secure it to the bottom of the duct outlet.
  12. G14190676

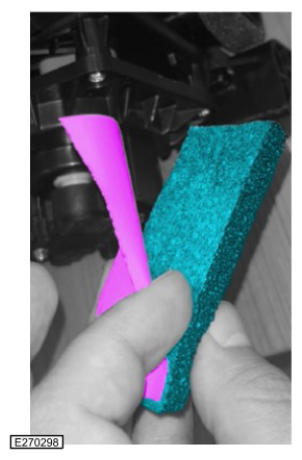

    Remove the protective backing from the other adhesive foam pad.

  13. NOTE: Make sure the adhesive side of the foam pad is pointing down
    G14190677

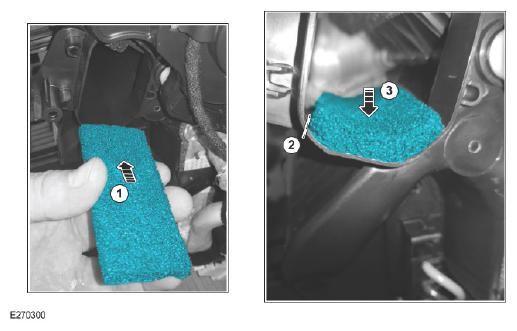

    Install the adhesive foam pad into the right foot duct outlet.

    1. Fully insert the adhesive foam pad until it is flush with the outside edge of the duct outlet.
    2. Align the edge of the adhesive foam pad with the edge of the duct outlet.
    3. Apply firm pressure across the whole adhesive foam pad to secure it to the bottom of the duct outlet.
  14. To install, reverse steps  2 to  7.
