XCL Smart Key Inoperative (SSM75411)
WARNING: This page is about the Defender 110, which is a different variant/trim than selected.
Publication date: 2021-05-21Reference number: SSM75411
XCL SMART KEY INOPERATIVE
TECHNICAL SERVICE BULLETIN
Reference Number(s): SSM75411, Date of Issue:
May 21, 2021
| LAND ROVER: | Defender/L663; Discovery Sport/L550; New Range Rover Evoque/L551; Range Rover Velar/L560 |
| SERVICE CATEGORY: | Electrical |
| SYMPTOM: | 205000 Electrical Accessories |
ATTACHMENTS
smart key inop SSM.pdf (smart key inop SSM.pdf)
CONTENT
ISSUE
Smart key inoperative. Insufficient or no power to the smart key.
CAUSE

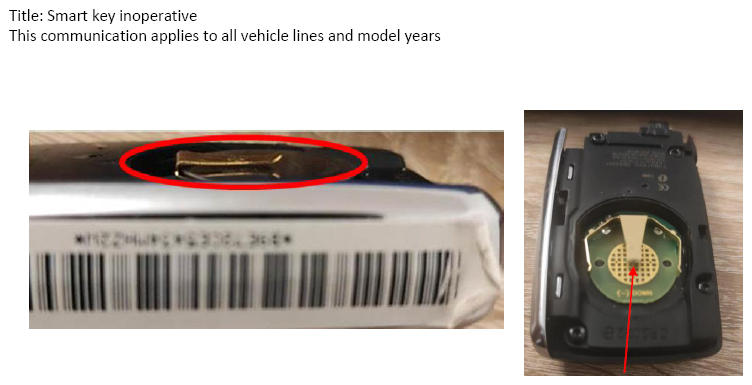

Smart key coin cell upper tension pin lifted from the positive terminal, due to unnecessary force applied when replacing the coin cell. As such, there is not enough pressure on the coin cell with the negative terminal.
ACTION
Remove the coin cell and press the upper positive terminal until the negative grid is touched. Upon recovering the position of the terminal, the coin cell shall have firm positive contact with the upper terminal. This should resolve the customer problem. If the problem persists, continue with the usual diagnostic steps to determine the faulty system component.
