System Check

WARNING:

The key in the control panel must be turned to the 'Off/Check' position prior to any maintenance or repair procedures being performed on the fire suppression system. Failure to do this could cause the system to activate.
A system check must be performed weekly.

Battery condition check:

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

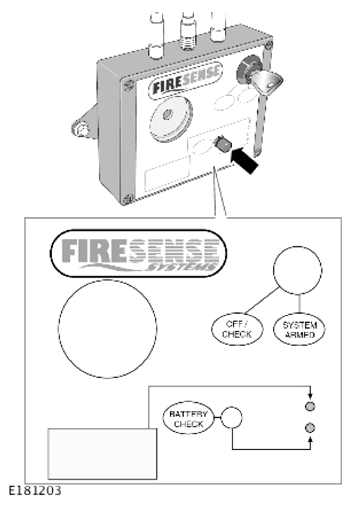

Fire suppression control module panel - battery check switch

NOTE: Make sure that the key switch on the control box is in the OFF/CHECK position, before testing battery condition.

To check battery condition, press and hold the red BATTERY CHECK switch on the control module's panel.

The following LED responses can be seen:

Flashing yellow light - indicates that the batteries are in a good state of charge.
Weak yellow light - indicates that the batteries are low in charge, replace the batteries.
If in doubt, replace the batteries.
