Speed Control (G2524160): Specifications

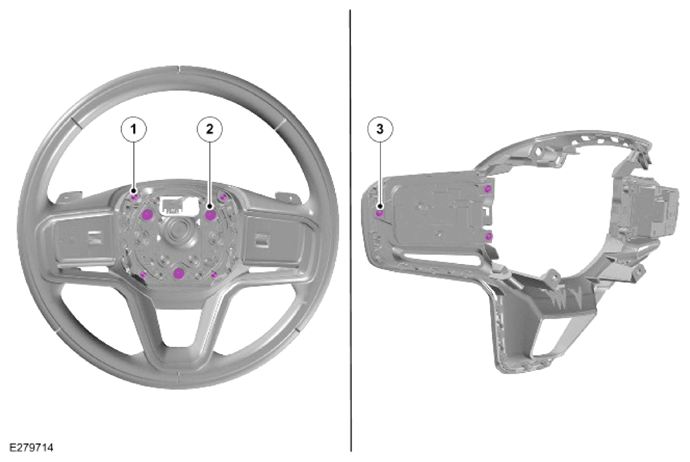

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Horn switch bolts	6	-	53
2	Steering wheel trim bolts	2	-	18
3	Speed control switch screws	0.5	-	4
