ES 250 Automatic
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Brake System
›
Wiring Diagram
Anti-Lock Brake System: Wiring Diagram

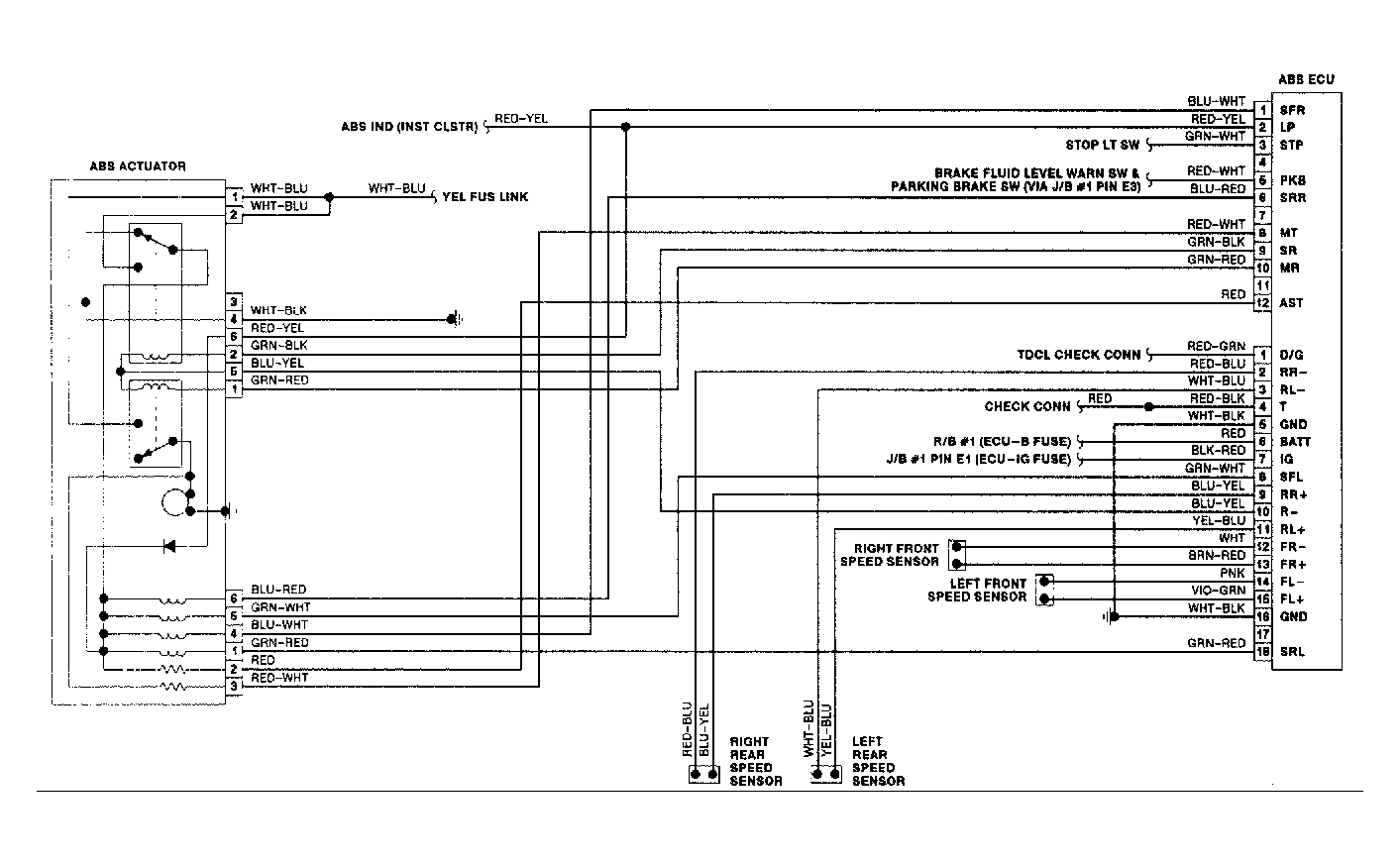

Fig 1: Anti-Lock Brake System Wiring Diagram
